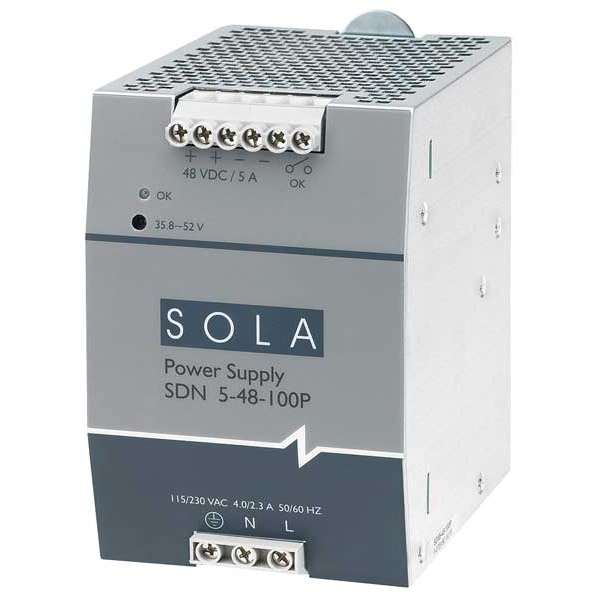

Solahd DC Power Supply, 115/230V AC, 48V DC, 240 W, 5 A, DIN Rail SDN548100P - main

DC Power Supply, 115/230V AC, 48V DC, 240 W, 5 A, DIN Rail

  • Mfr # SDN548100P

  • Zoro # G1502392

product price: $599.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
115/230V AC
Output Voltage - Nominal
48V DC
Output Power - Rated
240 W
Current - Output
5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDN548100P
Zoro #
G1502392
UPC #
783472001910
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
3.23 in
Overall Width
4.88 in
Overall Depth
4.55 in
Width
3.23 in
Depth
4.55 in
Height
4.88 in
Wire Size - Minimum
16 AWG
Wire Size - Maximum
10 AWG

Details

Item
DC Power Supply
Input Voltage
115/230V AC
Output Voltage - Nominal
48V DC
Output Power - Rated
240 W
Current - Output
5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Output Noise
Less Than 50mV
Series
SDN-P
Peak Amps
5.5
Hold Up Time
Greater Than 20 msec
Phase - Electrical
Single
Output Amps
5A
Operating Temp. Range
-10 to 60°C
Style
Switching
Features
Adjustable Voltage, Improved Metal Mounting Clip, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, Parallel Capability Standard On All Units, Power Factor Correction, User-Friendly Front Panel
Case Material
Metal Case
Standards
CE, cRUus, cULus, RoHS, Sag Immunity
Status Indicator
Green DC OK Signal
IP Rating
IP20
Power Rating
240W
Output Voltage
48V DC
Hz
60 Hz
Overload Capability
< 16-60 Vdc
Output Power
60-240 W
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D
Manufacturer Warranty
5 yr Limited
Wire Connection Type
Screw Terminals
Current - Inrush
40 A
Operating Temperature - Minimum
14 Degrees F
Special Features
Adjustable Voltage, Parallel Capability, Powers High Inrush
Operating Temperature - Maximum
140 Degrees F
Current - Peak
5.5 A
Mean Time Between Failures (MTBF)
500,000 hr
NEMA Enclosure Rating
1

Description

DC Power Supply, Input Voltage 115 to 230V AC, 90 to 375V DC, Output Voltage 48V DC, Power Rating 240W, Output Amps 5, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.88 in, Width 3.23 in, Depth 4.55 in, Series SDN-P, Hz 60 Hz, Phase - Electrical Single, Peak Amps 5.5, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 20 msec, Status Indicator Green DC OK Signal, NEMA Rating 1
