  11. DC Power Supply, 85/264V AC, 24V DC, 480 W, 20 A, DIN Rail

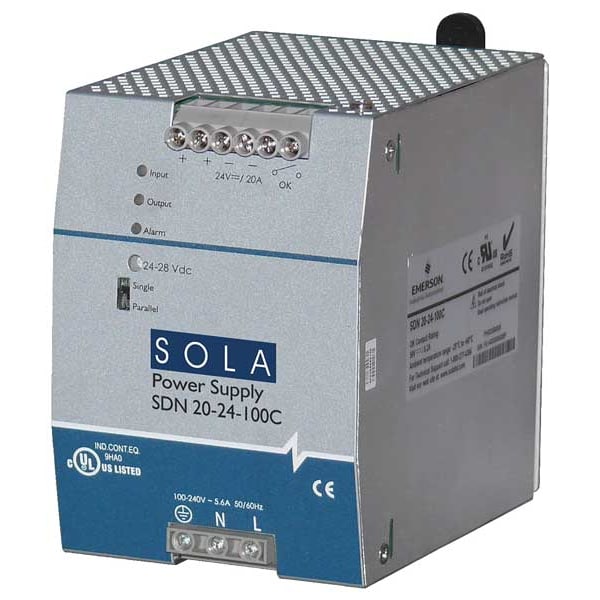

Solahd DC Power Supply, 85/264V AC, 24V DC, 480 W, 20 A, DIN Rail SDN2024100C - main

DC Power Supply, 85/264V AC, 24V DC, 480 W, 20 A, DIN Rail

  • Mfr # SDN2024100C

  • Zoro # G2040001

product price: $849.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDN2024100C
Zoro #
G2040001
UPC #
783472001965
Country of Origin
Philippines

Dimensions

Overall Height
3.42 in
Overall Width
4.85 in
Overall Depth
4.98 in
Depth
4.98 in
Width
3.42 in
Height
4.85 in
Wire Size - Maximum
10 AWG
Wire Size - Minimum
16 AWG

Details

Item
DC Power Supply
Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
480 W
Current - Output
20 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Peak Amps
22
Phase - Electrical
Single
Output Noise
Less Than 100mV
Style
Switching
Series
SDN-C
Hz
60 Hz
Status Indicator
LED
Features
Compact Packaging To Save Space On The DIN Rail, High MTBF Means High Reliability and Long Life, Higher Efficiency Saves Energy and Lowers Amount Of Heat Generated In Panel, Parallel Capability Standard, Power Factor Correction, Powerboost Overload Capability To Start High Inrush Loads, User Adjustable Output Voltage Accessible Via Front Face
Output Amps
20A
Case Material
Metal Case
Power Rating
480W
Operating Temp. Range
-25 to 60°C
Output Voltage
24V DC
Standards
ATEX Directive Ex II 3 G, Ex ec nC IIC Gc, Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC, IECEx Certified Ex ec nC IIC Gc, UL Class I, Division 2, Groups A, B, C, D
Hold Up Time
Greater Than 20 msec
IP Rating
IP20
Output Power
120-960 W
Overload Capability
> 30.5 but < 33 Vdc, auto recovery
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx nA nC IIC, Ex nA nC IIC
Mean Time Between Failures (MTBF)
800,000 hr
Operating Temperature - Minimum
-40 Degrees F
Special Features
Parallel Capability, Power Boost Function
Wire Connection Type
Screw Terminals
Manufacturer Warranty
5 yr Limited
Current - Peak
22 A
Current - Inrush
11.5 A
Operating Temperature - Maximum
158 Degrees F

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 480W, Output Amps 20, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.85 in, Width 3.42 in, Depth 4.98 in, Series SDN-C, Hz 60 Hz, Phase - Electrical Single, Peak Amps 22, IP Rating IP20, Output Noise Less Than 100mV, Hold Up Time Greater Than 20 msec, Status Indicator LED
