  11. DC Power Supply, 85/264V AC, 24V DC, 60 W, 2.5 A, DIN Rail/Chassis

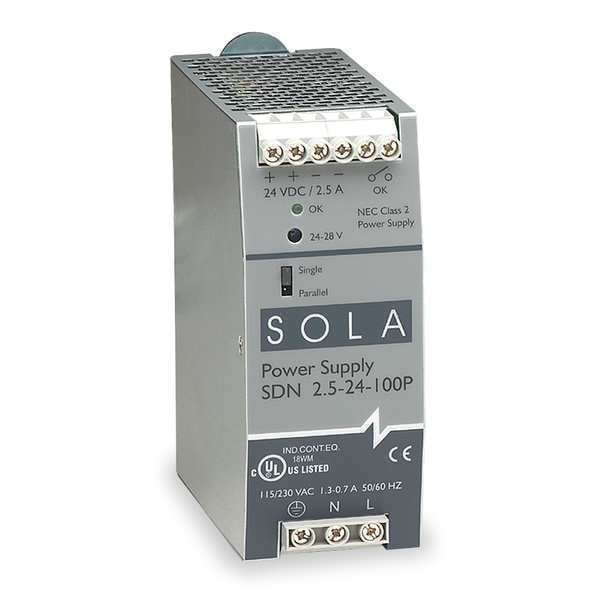

Solahd DC Power Supply, 85/264V AC, 24V DC, 60 W, 2.5 A, DIN Rail/Chassis SDN2.524100P - main

DC Power Supply, 85/264V AC, 24V DC, 60 W, 2.5 A, DIN Rail/Chassis

  • Mfr # SDN2.524100P

  • Zoro # G3131992

product price: $266.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail/Chassis
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SDN2.524100P
Zoro #
G3131992
UPC #
783472153183
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
1.97 in
Overall Width
4.88 in
Overall Depth
4.55 in
Width
1.97 in
Depth
4.55 in
Height
4.88 in
Wire Size - Maximum
10 AWG
Wire Size - Minimum
16 AWG

Details

Item
DC Power Supply
Input Voltage
85/264V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail/Chassis
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Status Indicator
Green DC OK Signal
Style
Switching
IP Rating
IP20
Output Amps
2.5A
Hz
47 to 63 Hz
Output Noise
Less Than 50mV
Standards
CE, cRUus, cULus, RoHS, Sag Immunity
Output Voltage
24V DC
Series
SDN-P
Operating Temp. Range
-10 to 60°C
Phase - Electrical
Single
Features
Adjustable Voltage, Improved Metal Mounting Clip, Industrial Grade Design, Narrow Width On Rail For Space Critical Applications, Parallel Capability Standard On All Units, Power Factor Correction, User-Friendly Front Panel
Hold Up Time
Greater Than 50 msec
Power Rating
60W
Case Material
Metal Case
UL Recognized Component, Haz. Loc.
Class I, Division 2, Groups A, B, C, D
Overload Capability
< 16-60 Vdc
Output Power
60-240 W
NEMA Enclosure Rating
1
Mean Time Between Failures (MTBF)
820,000 hr
Manufacturer Warranty
5 yr Limited
Wire Connection Type
Screw Terminals
Operating Temperature - Minimum
14 Degrees F
Current - Inrush
25 A
Special Features
Adjustable Voltage, Parallel Capability, Powers High Inrush
Operating Temperature - Maximum
140 Degrees F

Description

DC Power Supply, Input Voltage 115 to 230V AC, 90 to 375V DC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.5, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.88 in, Width 1.97 in, Depth 4.55 in, Series SDN-P, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 50 msec, Status Indicator Green DC OK Signal, NEMA Rating 1
