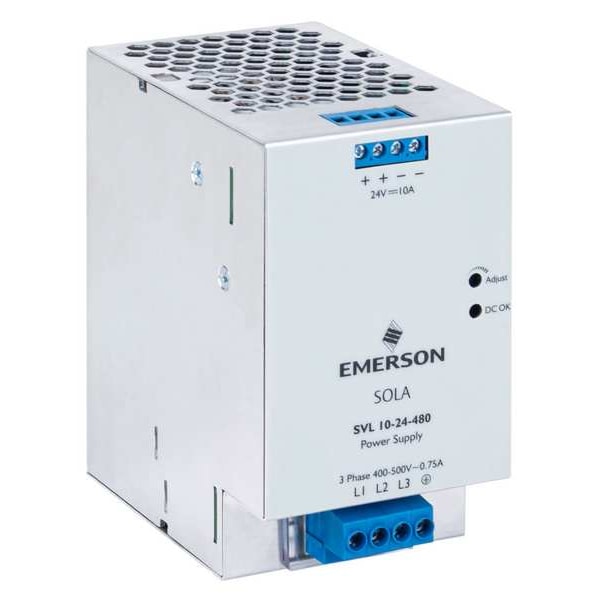

Solahd Din Rail Power Supply, 10 A, 240 W SVL1024480 - main

Din Rail Power Supply, 10 A, 240 W

  • Mfr # SVL1024480

  • Zoro # G402745292

product price: $272.99
/ea
Free Shipping & Returns

Key Features

Mounting
DIN Rail
Peak Amps
40 A
Style
Switching
Operating Temp. Range
-25 Degrees to 80 Degrees C
Case Material
Metal Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVL1024480
Zoro #
G402745292
UPC #
-
Country of Origin
India

Dimensions

Width
2.76 in
Depth
4.62 in
Height
4.76 in
Overall Height
4.76 in
Overall Width
2.76 in
Overall Depth
4.62 in

Details

Item
DC Power Supply
Mounting
DIN Rail
Peak Amps
40 A
Style
Switching
Operating Temp. Range
-25 Degrees to 80 Degrees C
Case Material
Metal Case
Phase - Electrical
Three
Input Voltage
400/500V AC
Hz
50 Hz to 60 Hz
Output Voltage
24V DC
Standards
CE, cRUus, cULus
Output Amps
10
Hold Up Time
Greater Than 20 msec at 3 x 400 V AC, Greater Than 40 msec at 3 x 500 V AC
Power Rating
240W
Features
Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection
Status Indicator
Green LED (OK)
Phase
Three
Housing Material
Metal
IP Rating
IP20
Mean Time Between Failures (MTBF)
500,000 hr
Power Supply Style
Switching
Operating Temperature - Minimum
-4 Degrees F
Output Power - Rated
240 W
Manufacturer Warranty
2 yr Limited
Operating Temperature - Maximum
158 Degrees F
Special Features
Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection
Series
SVL
Output Voltage - Nominal
24 V DC
Input Frequency - Nominal
50/60 Hz
Output Voltage - Minimum
24 V DC
Current - Output
10 A

Description

DC Power Supply, Input Voltage 400/500V AC, Output Voltage 24V DC, Power Rating 240W, Output Amps 10, Mounting DIN Rail, Switching, Case Material Metal Case, Height 4.76 in, Width 2.76 in, Depth 4.62 in, Series SVL, Hz 50 Hz to 60 Hz, Phase - Electrical Three, Peak Amps 40 A, IP Rating IP20, Hold Up Time Greater Than 20 msec at 3 x 400 V AC, Greater Than 40 msec at 3 x 500 V AC, Status Indicator Green LED (OK)
