  9. Din Rail Power Supply, 6 A, 30 W

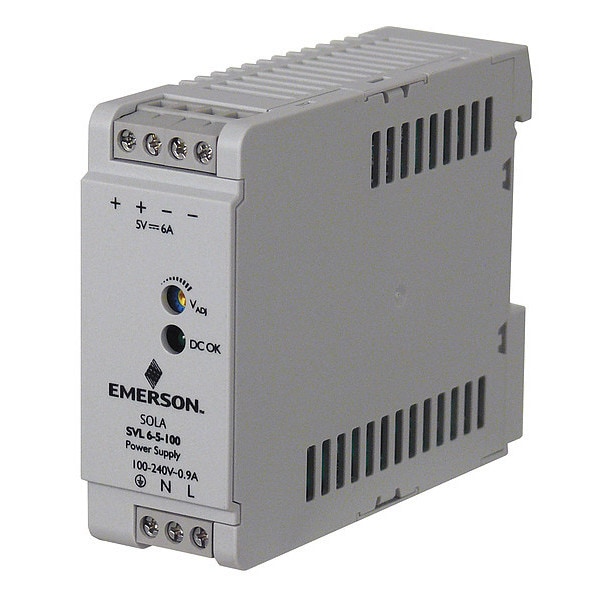

Solahd Din Rail Power Supply, 6 A, 30 W SVL65100 - main

Din Rail Power Supply, 6 A, 30 W

  • Mfr # SVL65100

  • Zoro # G102745288

product price: $65.69
/ea

Key Features

Standards
CE, cRUus, cULus
Depth
3.52 in
Hold Up Time
100 msec, 20 msec
Output Amps
6
Case Material
Metal Case
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVL65100
Zoro #
G102745288
UPC #
-
Country of Origin
India

Dimensions

Depth
3.52 in
Width
1.18 in
Height
2.95 in
Overall Width
1.18 in
Overall Height
2.95 in
Overall Depth
3.52 in

Details

Item
DC Power Supply
Standards
CE, cRUus, cULus
Hold Up Time
100 msec, 20 msec
Output Amps
6
Case Material
Metal Case
Input Voltage
100 to 240V AC
Output Voltage
5V DC
Phase - Electrical
Single
Status Indicator
Green LED (OK)
Features
Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection
Operating Temp. Range
-20 Degrees to 70 Degrees C
Hz
50 Hz to 60 Hz
Mounting
DIN Rail
Power Rating
30W
Peak Amps
35 A at 115 V AC, 60 A at 230 V AC
Style
Switching
Operating Temperature - Minimum
-4 Degrees F
Output Voltage - Nominal
5 V DC
Housing Material
Plastic
Output Noise - Maximum
75 mV
Output Voltage - Minimum
5 V DC
Mean Time Between Failures (MTBF)
350,000 hr
Phase
Single
Input Frequency - Nominal
50/60 Hz
IP Rating
IP20
Current - Output
6 A
Manufacturer Warranty
2 yr Limited
Series
SVL
Operating Temperature - Maximum
158 Degrees F
Special Features
Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection
Power Supply Style
Switching
Output Power - Rated
30 W
Start Up Time - Maximum
3,000 msec

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 5V DC, Power Rating 30W, Output Amps 6, Mounting DIN Rail, Switching, Case Material Metal Case, Height 2.95 in, Width 1.18 in, Depth 3.52 in, Series SVL, Hz 50 Hz to 60 Hz, Phase - Electrical Single, Peak Amps 35 A at 115 V AC, 60 A at 230 V AC, IP Rating IP20, Hold Up Time 100 msec, 20 msec, Status Indicator Green LED (OK)
