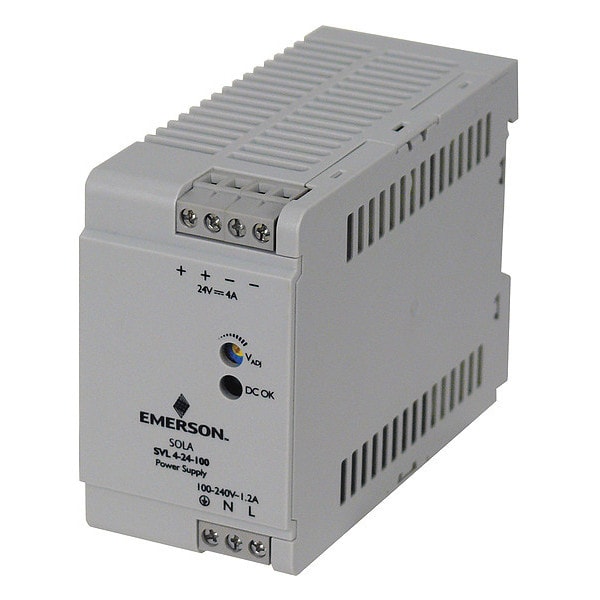

Solahd Power Supply 24V, 100W, 4A SVL424100 - main

Power Supply 24V, 100W, 4A

  • Mfr # SVL424100

  • Zoro # G6891600

product price: $102.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100 to 240V AC
Phase - Electrical
Single
Output Voltage
24V DC
Power Rating
96W
Output Amps
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVL424100
Zoro #
G6891600
UPC #
-
Country of Origin
India

Dimensions

Height
2.95 in
Depth
3.93 in
Width
1.77 in
Overall Width
1.77 in
Overall Depth
3.93 in
Overall Height
2.95 in

Details

Item
DC Power Supply
Input Voltage
100 to 240V AC
Phase - Electrical
Single
Output Voltage
24V DC
Power Rating
96W
Output Amps
4
Mounting
DIN Rail
Style
Switching
Case Material
Metal Case
Peak Amps
35 A at 115 V AC, 65 A at 230 V AC
Status Indicator
Green LED (OK)
Features
Convection Cooling, LED, Over Temperature Protection, Over Voltage Protection, Overload Protection, Power Factor Correction, Short Circuit Protection
Series
SVL
Standards
CE, cRUus, cULus
Hz
50 Hz to 60 Hz
IP Rating
IP20
Operating Temp. Range
-20 Degrees to 70 Degrees C
Hold Up Time
25 msec, 50 msec
Operating Temperature - Minimum
-4 Degrees F
Output Power - Rated
96 W
Housing Material
Metal
Operating Temperature - Maximum
158 Degrees F
Output Voltage - Nominal
24 V DC
Power Supply Style
Switching
Special Features
Convection Cooling, Overload Protection, Overtemperature Protection, Overvoltage Protection, Power Factor Correction, Protection Diagnostics, Short Circuit Protection
Start Up Time - Maximum
3,000 msec
Output Voltage - Minimum
24 V DC
Current - Output
4 A
Input Frequency - Nominal
50/60 Hz
Phase
Single
Mean Time Between Failures (MTBF)
350,000 hr
Output Noise - Maximum
75 mV
Manufacturer Warranty
2 yr Limited

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 96W, Output Amps 4, Mounting DIN Rail, Switching, Case Material Metal Case, Height 2.95 in, Width 1.77 in, Depth 3.93 in, Series SVL, Hz 50 Hz to 60 Hz, Phase - Electrical Single, Peak Amps 35 A at 115 V AC, 65 A at 230 V AC, IP Rating IP20, Hold Up Time 25 msec, 50 msec, Status Indicator Green LED (OK)
