  9. Polycrystalline Solar Panel, 20 W, 33.9V DC, 0.61 A, 72 Cells, Ring Terminal
This item is Discontinued.

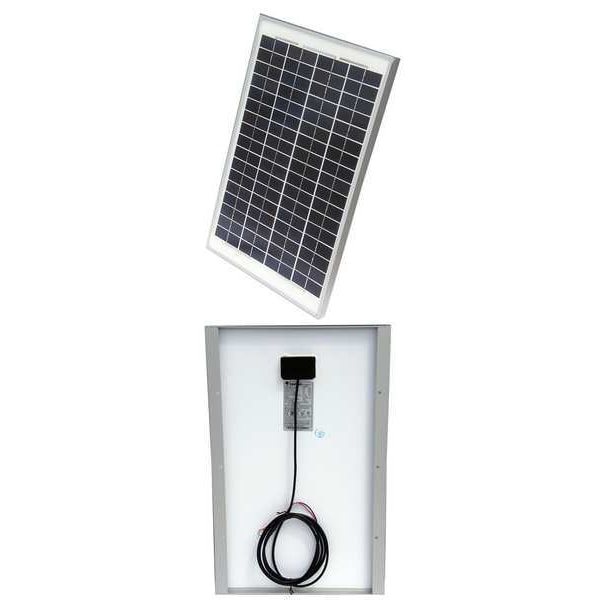

Solartech Power Polycrystalline Solar Panel, 20 W, 33.9V DC, 0.61 A, 72 Cells, Ring Terminal SPM020P-WP

Polycrystalline Solar Panel, 20 W, 33.9V DC, 0.61 A, 72 Cells, Ring Terminal (Discontinued)

  • Mfr # SPM020P-WP
  • Zoro # G7856773
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPM020P-WP
Zoro #
G7856773
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Width
13.8 in
Overall Height
21.7 in
Overall Depth
0.98 in
Cable Length
9 ft
Height
21 21/32 in
Depth
63/64 in
Width
13 25/32 in

Details

Item
Solar Panel
Maximum Power Point
20 W
Cell Type
Polycrystalline
Voltage @ Maximum Power Point
33.9V DC
Current @ Maximum Power Point
0.61 A
Number of Cells
72
Connector
Ring Terminal
Green Environmental Attribute
Product Contributes to Providing Renewable Energy
Short Circuit Current
0.65 A
Power Tolerance
+/-5%
Standards
ETL Class I, Division 2, Groups A, B, C and D, UL Listed 1703
Weight
6.17 lb
Operating Temp. Range
-40 Degrees to 185 Degrees F
Module Efficiency
10.4 %
Frame
Yes
Max. System Voltage
1000V DC (TUV)/600V DC (UL)
Open Circuit Voltage
41.3 V
Includes
Junction Box
Compatible with Series
W-Series
Rated Snow/Wind Load
30 lb/sq ft
Maximum Series Fuse Rating
10 A
Minimum Operating Temperature
-40 Degrees C
Maximum System Voltage
600V (UL)
Junction Box IP Rating
IP65
Compatible with Brand
SolarTech
Temperature Coefficient of PM
-0.46%/ Degrees K
Frame Material
Anodized Aluminum
Normal Operating Cell Temperature (NOCT)
48 Degrees C
Maximum Operating Temperature
90 Degrees C
Nominal Output Power
20 W
Panel Max. Power Point Voltage
33.9V DC
Panel Max. Power Point Current
0.61 A

Description

Solar Panel, Maximum Power Point 20 W, Number of Cells 68, Voltage @ Maximum Power Point 33.9 V, Current @ Maximum Power Point 0.61 A, Connector Ring Terminal, Cable Length 9 ft, Overall Height 21.7 in, Overall Width 13.8 in, Overall Depth 0.98 in, Compatible with Series W-Series, Includes Junction Box, Cell Type Polycrystalline, Compatible with Brand SolarTech, Weight 6.17 lb, Power Tolerance +/-5 Percent, Short Circuit Current 0.65 A
