Solberg

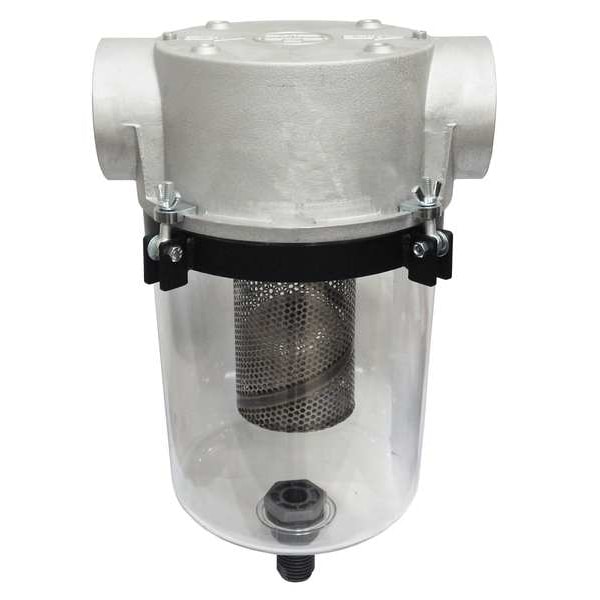

Liquid Separator, 3In FNPT Inlet/Outlet

product price: $1,525.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Height (In.) 19.75 in
  • Bowl Material Polycarbonate
  • Max. Temp. 220 Degrees F
  • Max. Flow 300 cfm
  • Drain Type Manual
See all product information

Product Information

Dimensions

Height (In.) 19.75 in
Bowl Size 256 oz.
Pipe Size 3" NPT
Overall Width 13 1/2 in
Overall Height 19.75"
Drain Port Size 1/8" NPT
Outside Diameter 13 1/2 in
Overall Depth 19 3/4 in
Element Size Category Medium
Air Outlet Size 3 in
Overall Length 20 9/16 in
Air Inlet Size 3 in

Details

Bowl Material Polycarbonate
Max. Temp. 220 Degrees F
Max. Flow 300 cfm
Drain Type Manual
For Use With 5F243, 6JD32, 5Z189, 6JD30, 6JD31, 2EPR3, 2EPR4, 2EPT8, 2EPT9
Max. Flow (CFM) 300
Item Liquid Separator
Housing Material ALuminum
Housing Aluminum
Filter Media Stainless Steel
Type Inline Vacuum Pump Filter
Air Inlet Type NPT
For Substance Type Liquid
Number of Air Inlets 1
For Fluid Type Water
Maximum Flow Rate 300 cfm
Drain Included Yes
Weight 25 lb
Body Material Aluminum
Number of Air Outlets 1
Air Outlet Type NPT
Minimum Operating Temperature -15 Degrees F
Maximum Operating Temperature 220 Degrees F

Description

Liquid Separator, Air Inlet Size 3 in, Air Inlet Type NPT, Maximum Flow Rate 300 cfm, Minimum Operating Temperature -15 Degrees F, Type Inline Vacuum Pump Filter, Outside Diameter 13 1/2 in, Overall Length 20 9/16 in, Weight 25 lb, Air Outlet Size 3 in, Air Outlet Type NPT, Body Material Aluminum, Bowl Material Polycarbonate, Drain Included Yes, Drain Type Manual, Element Size Category Medium, For Fluid Type Water
