Shop SOLER & PALAU

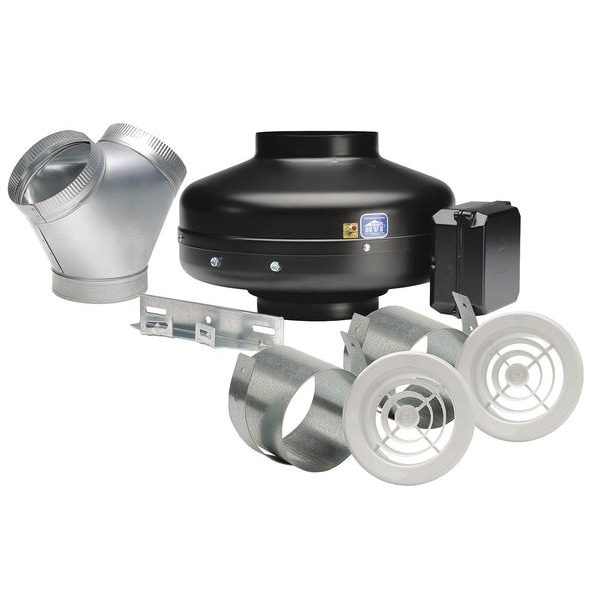

Inline Centrifugal Duct Fan, 4 In. Dia.

  • Mfr # KIT-PV100X-DV

  • Zoro # G8110347

product price:
$
259.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Galvanized Steel
Fits Duct Dia.
4 in
Voltage
120v
Max. Amps
0.7 A
Max. Wattage
84
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
KIT-PV100X-DV
Zoro #
G8110347
UPC #
812482010176
Country of Origin
Spain
Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Max. Amps
0.7 A
Max. Wattage
84
Number of Speeds
1
Motor RPM
2880
CFM @ 1.000-In. SP
80 cfm
CFM @ 0.500-In. SP
111 cfm
Max. Inlet Temp.
140 Degrees F
CFM @ 0.125-In. SP
142 cfm
CFM @ 0.750-In. SP
96 cfm
Phase
1
CFM @ 0.600-In. SP
106 cfm
Speed Control
Yes
CFM @ 1.500-In. SP
34 cfm
Housing Finish
Black Epoxy Coating
Bearing Type
Ball Bearing
Motor Enclosure
Totally Enclosed
Hz
60
CFM @ 0.100-In. SP
146
CFM @ 0.800-In. SP
92 cfm
Standards
AMCA, HVI, UL
CFM @ 0.250-In. SP
130 cfm
CFM @ 0.375-In. SP
120 cfm
CFM @ 1.200-In. SP
61 cfm
Includes
(1) Y Fitting, (2) Grilles, Mounting Bracket
CFM @ 0.200-In. SP
136 cfm
CFM @ 0.450-In. SP
113 cfm
CFM @ 0.000-In. SP
153
CFM @ 0.400-In. SP
116 cfm
Mounting Position
Horizontal or Vertical
For Fan Type
Dryer Booster Kit
Airflow @ 0.000 in SP
153 cfm
Motor Output Power
84 W
Speed Control Included
Yes
Nameplate Voltage
120V AC
Application
General Purpose
Motor Speed
2,880 RPM
Motor IP Rating
IP44
Maximum Inlet Air Temperature
140 Degrees F
High-Efficiency Motor
No
Speed Controllable
Yes
Mounting Orientation
Horizontal or Vertical

Description

In-Line Duct Fan, For Fan Type Dryer Booster Kit, Airflow @ 0.000 in SP 153 cfm, Duct Diameter 4 in, Motor Output Power 84 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 7 3/4 in, Overall Height 7 5/8 in, Overall Width 9 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,880 RPM, Includes (1) Y Fitting, (2) Grilles, Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F
