  9. Inline Centrifugal Duct Fan, 4 In. Dia.

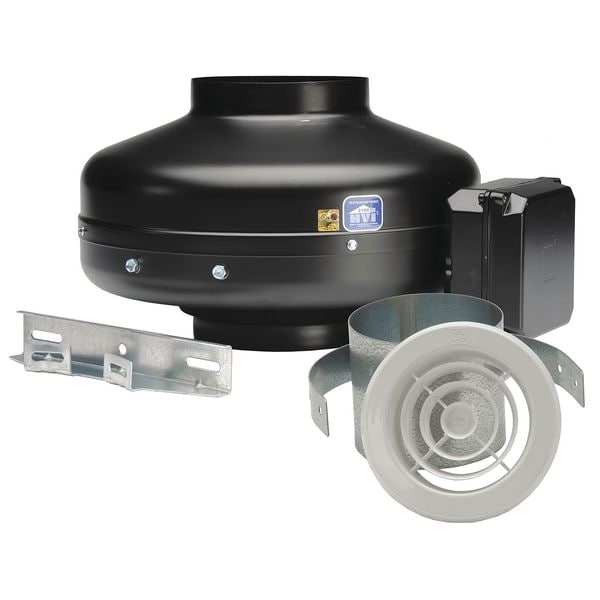

Soler & Palau Inline Centrifugal Duct Fan, 4 In. Dia. KIT-PV100X - main

Inline Centrifugal Duct Fan, 4 In. Dia.

  • Mfr # KIT-PV100X

  • Zoro # G7817311

product price: $231.60
/ea
Free Shipping & Returns

Key Features

Housing Material
Galvanized Steel
Fits Duct Dia.
4 in
Voltage
120v
Max. Amps
0.7 A
Max. Wattage
84
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KIT-PV100X
Zoro #
G7817311
UPC #
812482010152
Country of Origin
Spain

Dimensions

Fits Duct Dia.
4 in
Housing Dia.
9 1/2 in
Length
9 1/2 in
Height
7 5/8 in
Inlet and Outlet Dia.
4 in
Flange Width
1 in
Width
9 1/2 in
Duct Diameter
4 in
Overall Diameter
7 3/4 in
Overall Width
9 1/2 in
Overall Height
7 5/8 in

Details

Item
In-Line Duct Fan
Housing Material
Galvanized Steel
Voltage
120v
Max. Amps
0.7 A
Max. Wattage
84
Number of Speeds
1
Motor RPM
2880
CFM @ 0.450-In. SP
113 cfm
Housing Finish
Black Epoxy Coating
CFM @ 0.125-In. SP
142 cfm
CFM @ 0.500-In. SP
111 cfm
CFM @ 0.800-In. SP
92 cfm
CFM @ 0.600-In. SP
106 cfm
CFM @ 0.400-In. SP
116 cfm
CFM @ 1.500-In. SP
34 cfm
CFM @ 0.100-In. SP
146
CFM @ 0.000-In. SP
153
CFM @ 1.200-In. SP
61 cfm
Bearing Type
Ball Bearing
Includes
Intake Grill, Mounting Bracket
CFM @ 0.750-In. SP
96 cfm
CFM @ 0.375-In. SP
120 cfm
Mounting Position
Horizontal or Vertical
Phase
1
Motor Enclosure
Totally Enclosed
Standards
AMCA, HVI, UL
CFM @ 1.000-In. SP
80 cfm
Max. Inlet Temp.
140 Degrees F
Speed Control
Yes
CFM @ 0.250-In. SP
130 cfm
Hz
60
CFM @ 0.200-In. SP
136 cfm
Speed Control Included
Yes
Application
General Purpose
High-Efficiency Motor
No
Mounting Orientation
Horizontal or Vertical
Motor Speed
2,880 RPM
Speed Controllable
Yes
Nameplate Voltage
120V AC
Motor Output Power
84 W
Maximum Inlet Air Temperature
140 Degrees F
Airflow @ 0.000 in SP
153 cfm
Motor IP Rating
IP44
For Fan Type
Dryer Booster Kit

Description

In-Line Duct Fan, For Fan Type Dryer Booster Kit, Airflow @ 0.000 in SP 153 cfm, Duct Diameter 4 in, Motor Output Power 84 W, Motor IP Rating IP44, Nameplate Voltage 120V AC, Phase 1, Number of Speeds 1, Overall Diameter 7 3/4 in, Overall Height 7 5/8 in, Overall Width 9 1/2 in, Application General Purpose, High-Efficiency Motor No, Housing Material Galvanized Steel, Motor Speed 2,880 RPM, Includes Intake Grill, Mounting Bracket, Maximum Inlet Air Temperature 140 Degrees F

Restrictions

This item has been restricted from sale in the following states: NJ
