  9. Motorized Damper with Controller, 6 in

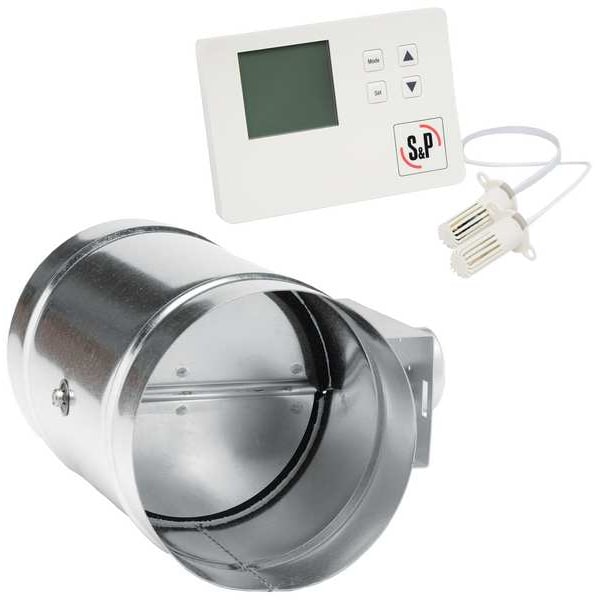

Soler & Palau Motorized Damper with Controller, 6 in MD6-ES24VK - main

Motorized Damper with Controller, 6 in

  • Mfr # MD6-ES24VK

  • Zoro # G403457439

product price: $166.99
/ea
Free Shipping & Returns

Key Features

Type
Normally Closed, Single Blade
For Use With
HVAC Blower
Color
Galvanized Steel
Overall Length
9 3/4 in
Agency Compliance
ASHRAE 62.2 - 2010/2013, IRC 2012/2015
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MD6-ES24VK
Zoro #
G403457439
UPC #
817418019742
Country of Origin
China

Dimensions

Overall Length
9 3/4 in
Dia. (In.)
6 in
Width (In.)
6 in
Height (In.)
9 7/8 in
Flange Width
3 in
Rough Opening Width
5.6 in
Overall Width
6 in
For Nominal Duct Diameter
6 in
Rough Opening Length
5 1/2 in
Overall Diameter
6 in
Overall Height
9 7/8 in
Rough Opening Diameter
5.6 in

Details

Item
Round Motrzd Damper wController,6 in
Type
Normally Closed, Single Blade
For Use With
HVAC Blower
Color
Galvanized Steel
Agency Compliance
ASHRAE 62.2 - 2010/2013, IRC 2012/2015
Application
General/Clean Air, Outdoor Air Solution
Blade Material
Galvanized Steel
Includes
Envirosense Ventilation Control
Standards
ASHRAE 62.2; IRC
Voltage (AC)
24 V AC
Output Amps
0.3 VA
Power Method
24 Volt
Ambient Temp. Range
104 Degrees F
Ambient Humidity Range (%)
0 to 90
Rotation Angle (Deg.)
90 Degrees
Requires
Ventilation Timer
Torque (In.-Lbs.)
0.424 N-m
Terminal Designations
CCW
Timing (Sec.)
10 sec
Connection
2 Wires
Counterbalanced
No
Includes Motor
Yes
Mounting Position
Horizontal; Vertical
Damper Application
Motorized
Nameplate Voltage
24V DC
Electrical Connection
Hardwired
Full Load Current
0.3 A
Free Area
25.1 sq in
Switch Action
Normally Closed
Blade Type
Flat Blade
Airflow Direction
Horizontal; Vertical
Damper Type
Dynamic
Frame Material
Galvanized Steel
Blade Seal Material
Rubber
For Air Type
Clean Air
Maximum Temperature Rating
104 Degrees F
Number of Panels
1
Rough Opening Shape
Round
For Duct Shape
Round
Frequency
60 Hz

Description

Round Motrzd Damper wController,6 in, For Nominal Duct Diameter 6 in, Damper Application Motorized, Number of Panels 1, Overall Height 9 7/8 in, Overall Length 9 3/4 in, Rough Opening Shape Round, For Duct Shape Round, Overall Width 6 in, Blade Material Galvanized Steel, Overall Diameter 6 in, Rough Opening Length 5 1/2 in, Rough Opening Width 5.6 in, Damper Type Dynamic, Nameplate Voltage 24V DC, Rough Opening Diameter 5.6 in, Includes Envirosense Ventilation Control
