  11. In-Ceiling Speaker, White, 20 Max. Wattage

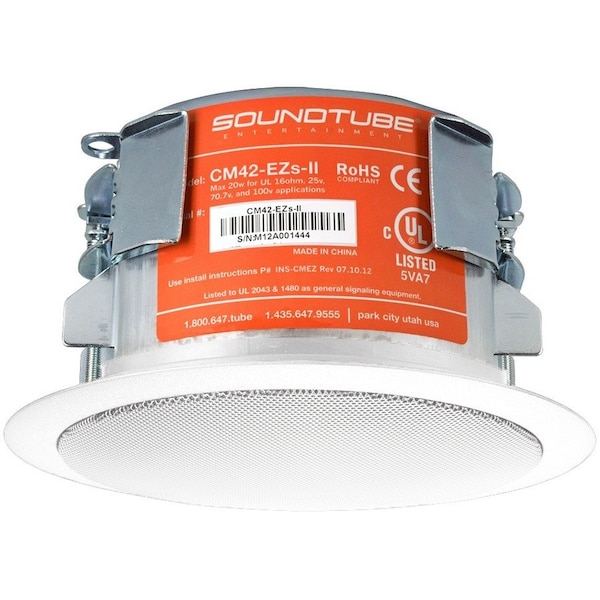

Soundtube In-Ceiling Speaker, White, 20 Max. Wattage CM42-EZS-II-WH - main

In-Ceiling Speaker, White, 20 Max. Wattage

  • Mfr # CM42-EZS-II-WH

  • Zoro # G3921920

product price: $157.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE, EN54, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM42-EZS-II-WH
Zoro #
G3921920
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
9
Overall Height (In.)
6
Tweeter Dia. (In.)
3/4 in
Woofer Dia. (In.)
4 in
Overall Width (In.)
9
Overall Width
7 1/2 in
Overall Height
3 3/4 in
Tweeter Diameter
3/4 in
Overall Depth
7 1/2 in
Woofer Diameter
4 in

Details

Item
In-Ceiling Speaker
Type
In Ceiling
Standards
CE, EN54, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket
Sensitivity (dB)
84 dB
Weight (Lbs.)
5
Tweeter Composition
Silk
Power Taps @ 25V
2 W
Power Taps @ 75V
20 W
Impedance (Ohms)
16 ohm
Woofer Composition
Fiber
Max. Wattage
20 W
Transformer Settings
25V/70V/100V
Watt (RMS)
20 W
Frequency Response
160Hz to 20KHz
Number of Channels
1
Sensitivity
88 dB
Driver Configuration
2-Way
Power Style
Passive
Output Wattage - Peak
40 W
Frequency Response - Maximum
22 kHz
Transformer Taps @ 25V
2.5 W
Dispersion - Conical
95 Degrees
Impedance
16 ohm
Woofer Material
Fiber
Tweeter Material
Silk
Output Wattage - RMS
20 W
Transformer Taps @ Low Voltage
16 ohm
Mounting Style
Flush Mount
For Location
Indoor
Transformer Taps @ 70V
20 W
Includes Transformer
Transformer Included
Compatible Input Voltage
100V, 25V, 70V
Includes Mounting Hardware
Mounting Hardware Included
Housing Material
ABS, Steel
Enclosure Style
Backcan
Housing Color
White
Frequency Response - Minimum
125 Hz

Description

In-Ceiling Speaker, In Ceiling, Overall Height (In.) 6, Overall Width (In.) 9, Overall Length (In.) 9, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 3/4 in, Tweeter Composition Silk, Woofer Dia. (In.) 4 in, Woofer Composition Fiber, 20 W Watt (RMS), Max. Wattage 20 W, Sensitivity (dB) 84 dB, Impedance (Ohms) 16 ohm, Transformer Settings 25V/70V/100V, 2 W Power Taps @ 25V, 20 W Power Taps @ 75V, Frequency Response 160Hz to 20KHz, Weight (Lbs.) 5
