  11. In-Ceiling Speaker, White, 50 Max. Wattage

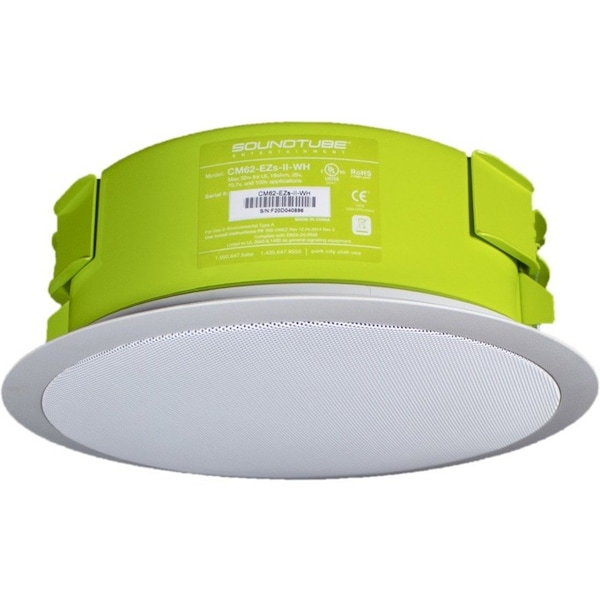

Soundtube In-Ceiling Speaker, White, 50 Max. Wattage CM62-EZS-II-WH - main

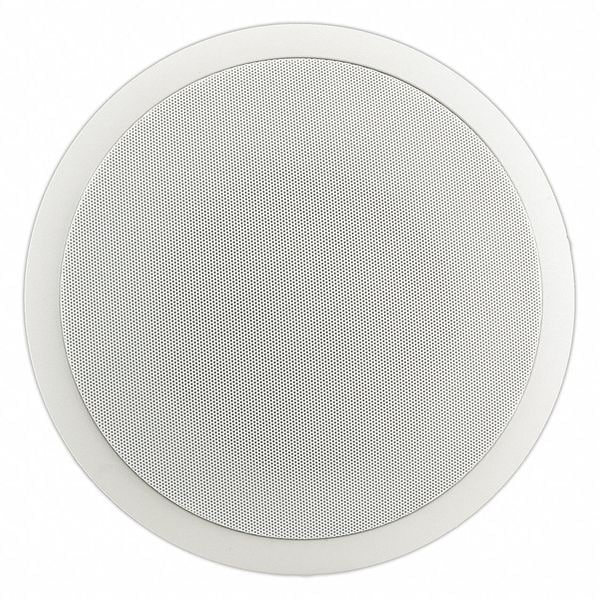

In-Ceiling Speaker, White, 50 Max. Wattage

  • Mfr # CM62-EZS-II-WH

  • Zoro # G3922191

product price: $223.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE, EN54, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM62-EZS-II-WH
Zoro #
G3922191
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
13
Overall Height (In.)
6
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
6 1/2 in
Overall Width (In.)
13
Overall Height
6 3/4 in
Woofer Diameter
6 1/2 in
Overall Width
11 3/4 in
Overall Depth
11 3/4 in
Tweeter Diameter
1 in

Details

Item
In-Ceiling Speaker
Type
In Ceiling
Standards
CE, EN54, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Clamp, Cover Plate, Grille, Paint Mask, Tile Bridge or Pre-Construction Bracket
Sensitivity (dB)
90 dB
Weight (Lbs.)
9
Tweeter Composition
Silk
Impedance (Ohms)
16 ohm
Max. Wattage
50 W
Woofer Composition
Fiber
Watt (RMS)
50
Frequency Response
135Hz to 22KHz
Power Taps @ 25V
4
Transformer Settings
25v/70v/100v
Power Taps @ 75V
32
Number of Channels
1
Enclosure Style
Backcan
Compatible Input Voltage
100V, 25V, 70V
Driver Configuration
2-Way
Housing Material
ABS Glass Fiber
Frequency Response - Maximum
22 kHz
Includes Transformer
Transformer Included
Frequency Response - Minimum
75 Hz
Output Wattage - RMS
50 W
Impedance
16 ohm
IP Rating
IPX3
Power Style
Passive
Transformer Taps @ 25V
4 W
For Location
Indoor
Output Wattage - Peak
100 W
Mounting Style
Flush Mount
Dispersion - Conical
120 Degrees
Sensitivity
88 dB
Housing Color
White
Woofer Material
Fiber
Transformer Taps @ 70V
32 W
Transformer Taps @ Low Voltage
16 ohm
Includes Mounting Hardware
Mounting Hardware Included
Tweeter Material
Silk

Description

In-Ceiling Speaker, In Ceiling, Overall Height (In.) 6, Overall Width (In.) 13, Overall Length (In.) 13, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Silk, Woofer Dia. (In.) 6 1/2 in, Woofer Composition Fiber, 50 Watt (RMS), Max. Wattage 50 W, Sensitivity (dB) 90 dB, Impedance (Ohms) 16 ohm, Transformer Settings 25v/70v/100v, 4 Power Taps @ 25V, 32 Power Taps @ 75V, Frequency Response 135Hz to 22KHz, Weight (Lbs.) 9
