  11. Speaker, Black, 20 Max. Wattage

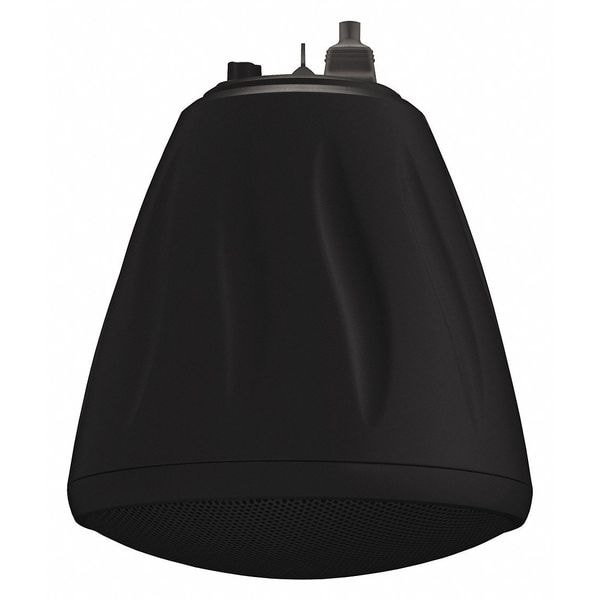

Soundtube Speaker, Black, 20 Max. Wattage RS4-EZ-BK - main

Speaker, Black, 20 Max. Wattage

  • Mfr # RS4-EZ-BK

  • Zoro # G3925052

product price: $205.99
/ea
Free Shipping & Returns

Key Features

Type
Indoor Pendant
Standards
CE Compliant, RoHS, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS4-EZ-BK
Zoro #
G3925052
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
10
Overall Height (In.)
11
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
4 in
Overall Width (In.)
10
Woofer Diameter
4 in
Tweeter Diameter
1 in
Overall Depth
7 3/4 in
Overall Height
8 3/4 in
Overall Width
7 3/4 in

Details

Item
Speaker
Type
Indoor Pendant
Standards
CE Compliant, RoHS, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
Includes
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Sensitivity (dB)
90 dB
Weight (Lbs.)
6
Tweeter Composition
Paper
Woofer Composition
Treated Paper
Max. Wattage
20 W
Impedance (Ohms)
8 ohm
Frequency Response
100Hz to 22KHz
Transformer Settings
25V/70V/100V
Power Taps @ 25V
2
Power Taps @ 75V
20
Watt (RMS)
20
Frequency Response - Minimum
98 Hz
Transformer Taps @ Low Voltage
8 ohm
Housing Material
ABS Glass Fiber
Driver Configuration
1-Way
Tweeter Material
Paper
Output Wattage - Peak
40 W
Includes Transformer
Transformer Included
Transformer Taps @ 70V
20 W
Includes Mounting Hardware
Mounting Hardware Included
Impedance
8 ohm
Housing Color
Black
Number of Channels
1
Frequency Response - Maximum
22 kHz
Power Style
Passive
Compatible Input Voltage
100V, 25V, 70V
Transformer Taps @ 25V
2.5 W
Output Wattage - RMS
20 W
For Location
Indoor, Outdoor
Enclosure Style
Pendant
Dispersion - Conical
60 Degrees
Sensitivity
90 dB
Woofer Material
Treated Paper

Description

Speaker, Indoor Pendant, Overall Height (In.) 11, Overall Width (In.) 10, Overall Length (In.) 10, Enclosure Color Black, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Paper, Woofer Dia. (In.) 4 in, Woofer Composition Treated Paper, 20 Watt (RMS), Max. Wattage 20 W, Sensitivity (dB) 90 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 2 Power Taps @ 25V, 20 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 6
