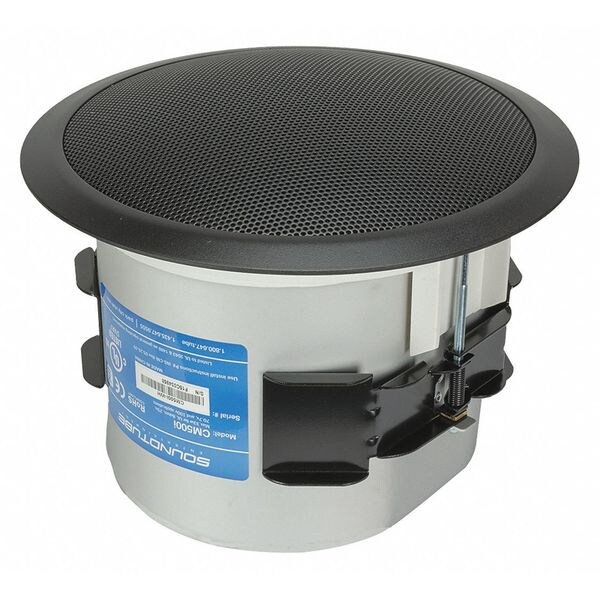

Speaker, Black, 75 Max. Wattage

  • Mfr # CM500I-BK

  • Zoro # G3921948


product price: $460.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM500I-BK
Zoro #
G3921948
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
14
Overall Height (In.)
16
Woofer Dia. (In.)
5 1/4 in
Tweeter Dia. (In.)
1 in
Overall Width (In.)
14
Overall Depth
10 3/4 in
Tweeter Diameter
1 in
Overall Height
8 3/4 in
Woofer Diameter
5 1/4 in
Overall Width
10 3/4 in

Details

Item
Speaker
Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
Includes
Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
Sensitivity (dB)
87 dB
Weight (Lbs.)
13
Tweeter Composition
Aluminum
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Max. Wattage
75 W
Transformer Settings
25v/70v/100v
Frequency Response
75Hz to 22KHz
Watt (RMS)
75
Power Taps @ 75V
33
Power Taps @ 25V
4
Number of Channels
1
Woofer Material
Polypropylene
Includes Mounting Hardware
Mounting Hardware Included
Housing Color
Black
Tweeter Material
Titanium
Impedance
8 ohm
Includes Transformer
Transformer Included
Transformer Taps @ 25V
5 W
Housing Material
ABS, Aluminum
Driver Configuration
2-Way
Frequency Response - Minimum
55 Hz
Frequency Response - Maximum
22 kHz
Sensitivity
87 dB
Compatible Input Voltage
100V, 25V, 70V
For Location
Indoor
Output Wattage - Peak
150 W
Transformer Taps @ Low Voltage
8 ohm
Output Wattage - RMS
75 W
Transformer Taps @ 70V
33 W
Power Style
Passive
Enclosure Style
Backcan
Mounting Style
Flush Mount
Dispersion - Conical
125 Degrees

Description

Speaker, In Ceiling, Overall Height (In.) 16, Overall Width (In.) 14, Overall Length (In.) 14, Enclosure Color Black, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Aluminum, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 87 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25v/70v/100v, 4 Power Taps @ 25V, 33 Power Taps @ 75V, Frequency Response 75Hz to 22KHz, Weight (Lbs.) 13
