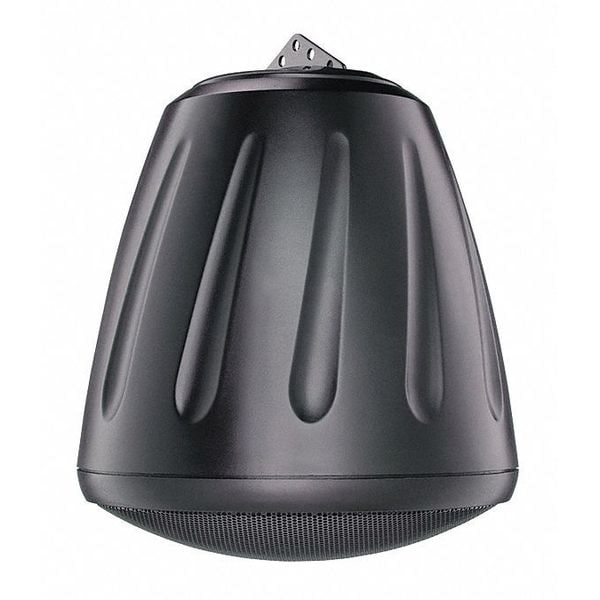

Speaker, Black, 75 Max. Wattage

  • Mfr # RS500I-BK

  • Zoro # G3924949


product price: $381.59
/ea
Free Shipping & Returns

Key Features

Type
Indoor Pendant
Standards
CE Compliant, MIL Spec, RoHS, UL1480A, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS500I-BK
Zoro #
G3924949
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
12
Overall Height (In.)
15
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
5 1/4 in
Depth
11.7"
Width
9.7"
Overall Width (In.)
12
Overall Width
9 3/4 in
Overall Depth
9 3/4 in
Woofer Diameter
5 1/4 in
Tweeter Diameter
1 in
Overall Height
11 3/4 in

Details

Item
Speaker
Type
Indoor Pendant
Standards
CE Compliant, MIL Spec, RoHS, UL1480A, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
Includes
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Sensitivity (dB)
87 dB
Weight (Lbs.)
12
Tweeter Composition
Paper
Max. Wattage
75 W
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Power Taps @ 25V
4
Power Taps @ 75V
33
Transformer Settings
25V/70V/100V
Watt (RMS)
75
Frequency Response
100Hz to 22KHz
Number of Channels
1
Output Wattage - RMS
75 W
Transformer Taps @ 70V
33 W
Includes Mounting Hardware
Mounting Hardware Included
Transformer Taps @ Low Voltage
8 ohm
Transformer Taps @ 25V
5 W
Sensitivity
87 dB
Woofer Material
Polypropylene
Power Style
Passive
Compatible Input Voltage
100V, 25V, 70V
Driver Configuration
2-Way
Frequency Response - Minimum
61 Hz
Enclosure Style
Pendant
For Location
Indoor, Outdoor
Frequency Response - Maximum
22 kHz
Dispersion - Conical
105 Degrees
Output Wattage - Peak
150 W
Housing Color
Black
Includes Transformer
Transformer Included
Impedance
8 ohm
Housing Material
ABS Glass Fiber
Tweeter Material
Aluminum
Mounting
Ceiling Mountable

Description

Speaker, Indoor Pendant, Overall Height (In.) 15, Overall Width (In.) 12, Overall Length (In.) 12, Enclosure Color Black, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Paper, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 87 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 4 Power Taps @ 25V, 33 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 12
