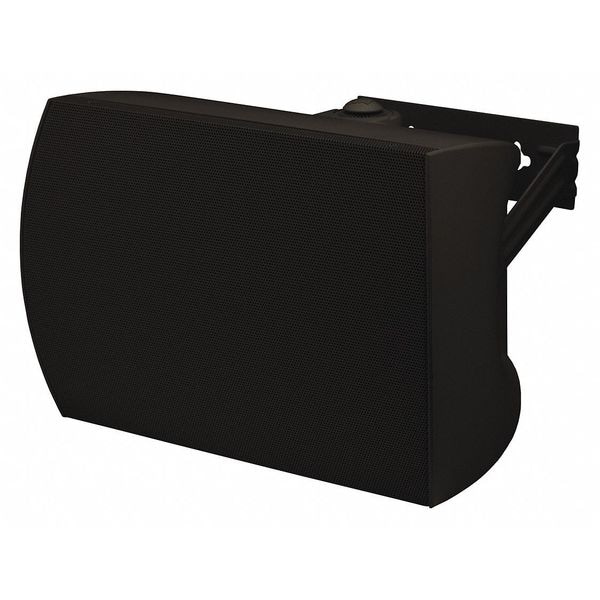

Soundtube Speaker, Black, 75 Max. Wattage SM52-EZ-WX-BK - main

Speaker, Black, 75 Max. Wattage

  • Mfr # SM52-EZ-WX-BK

  • Zoro # G3925131

product price: $284.58
/ea
Free Shipping & Returns

Key Features

Type
Outdoor
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Outdoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SM52-EZ-WX-BK
Zoro #
G3925131
UPC #
748252172372
Country of Origin
China

Dimensions

Overall Length (In.)
13
Overall Height (In.)
11
Woofer Dia. (In.)
5 1/4 in
Tweeter Dia. (In.)
1 in
Overall Width (In.)
13
Tweeter Diameter
1 in
Overall Width
7 1/2 in
Woofer Diameter
5 1/4 in
Overall Depth
8 3/4 in
Overall Height
12 in

Details

Item
Speaker
Type
Outdoor
Standards
CE Compliant, EN54, RoHS, UL1480A
Indoor/Outdoor
Outdoor
Enclosure Material
Plastic/Metal
Enclosure Color
Black
Includes
Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland
Sensitivity (dB)
84 dB
Weight (Lbs.)
9
Tweeter Composition
Silk
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Max. Wattage
75 W
Frequency Response
100Hz to 22KHz
Power Taps @ 75V
32
Watt (RMS)
75
Transformer Settings
25V/70V/100V
Power Taps @ 25V
4
Number of Channels
1
Power Style
Passive
Output Wattage - Peak
100 W
Frequency Response - Maximum
22 kHz
Frequency Response - Minimum
62 Hz
Sensitivity
83 dB
Transformer Taps @ 25V
0.5 W, 1 W, 2 W, 4 W
Housing Material
Polystyrene
Includes Mounting Hardware
Mounting Hardware Included
Driver Configuration
2-Way
For Location
Indoor, Outdoor
Enclosure Style
Backcan
Output Wattage - RMS
50 W
Woofer Material
Polypropylene
Compatible Input Voltage
100V, 25V, 70V
IP Rating
IP65
Transformer Taps @ Low Voltage
8 ohm
Transformer Taps @ 70V
2 W, 4 W, 8 W, 16 W, 32 W
Dispersion - Conical
70 Degrees
Mounting Style
Surface Mount
Impedance
8 ohm
Includes Transformer
Transformer Included
Tweeter Material
Silk
Housing Color
Black

Description

Speaker, Outdoor, Overall Height (In.) 11, Overall Width (In.) 13, Overall Length (In.) 13, Enclosure Color Black, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Silk, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 84 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 4 Power Taps @ 25V, 32 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 9
