  11. Speaker, White, 20 Max. Wattage

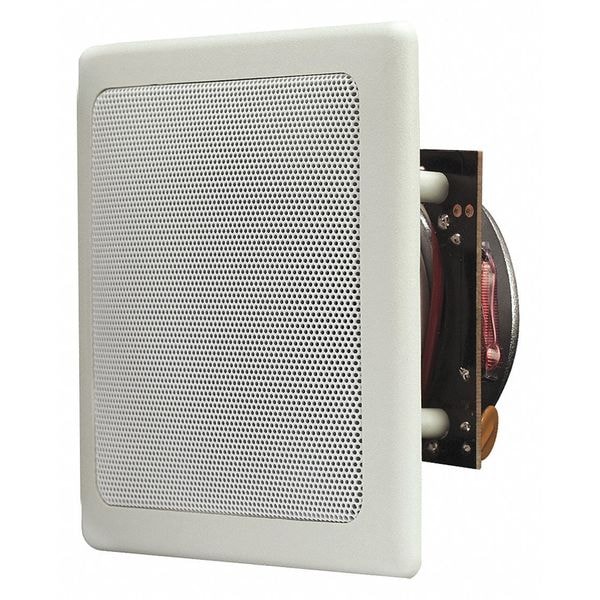

Soundtube Speaker, White, 20 Max. Wattage RF31-EZ-T-WH - main

Speaker, White, 20 Max. Wattage

  • Mfr # RF31-EZ-T-WH

  • Zoro # G3924860

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Type
Raw Frame
Standards
CE Compliant, RoHS, UL1480A
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RF31-EZ-T-WH
Zoro #
G3924860
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
7
Overall Height (In.)
7
Woofer Dia. (In.)
5 in
Tweeter Dia. (In.)
3 in
Overall Width (In.)
10
Overall Width
4 3/4 in
Woofer Diameter
5 in
Overall Depth
4 3/4 in
Tweeter Diameter
3 in
Overall Height
2 in

Details

Item
Speaker
Type
Raw Frame
Standards
CE Compliant, RoHS, UL1480A
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Grille, Paint Mask
Sensitivity (dB)
88 dB
Weight (Lbs.)
3
Tweeter Composition
Polypropylene
Woofer Composition
Paper
Max. Wattage
20 W
Impedance (Ohms)
8 ohm
Transformer Settings
25V/70V/100V
Power Taps @ 75V
10
Watt (RMS)
20
Frequency Response
100Hz to 22KHz
Power Taps @ 25V
1
Number of Channels
1
Power Style
Passive
Driver Configuration
2-Way
Transformer Taps @ 70V
10 W
Housing Material
ABS
Dispersion - Conical
50 Degrees
Mounting Style
Flush Mount
Impedance
8 ohm
Woofer Material
Paper
Sensitivity
85 dB
Compatible Input Voltage
100V, 25V, 70V
Transformer Taps @ 25V
10 W
Output Wattage - Peak
20 W
Frequency Response - Minimum
82 Hz
Output Wattage - RMS
10 W
For Location
Indoor, Outdoor
Enclosure Style
Backcan
Includes Mounting Hardware
Mounting Hardware Included
Frequency Response - Maximum
22 kHz
Includes Transformer
Transformer Included
Housing Color
White
Tweeter Material
Polypropylene

Description

Speaker, Raw Frame, Overall Height (In.) 7, Overall Width (In.) 10, Overall Length (In.) 7, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 3 in, Tweeter Composition Polypropylene, Woofer Dia. (In.) 5 in, Woofer Composition Paper, 20 Watt (RMS), Max. Wattage 20 W, Sensitivity (dB) 88 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 1 Power Taps @ 25V, 10 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 3, Includes Grille, Paint Mask
