  11. Speaker, White, 20 Max. Wattage

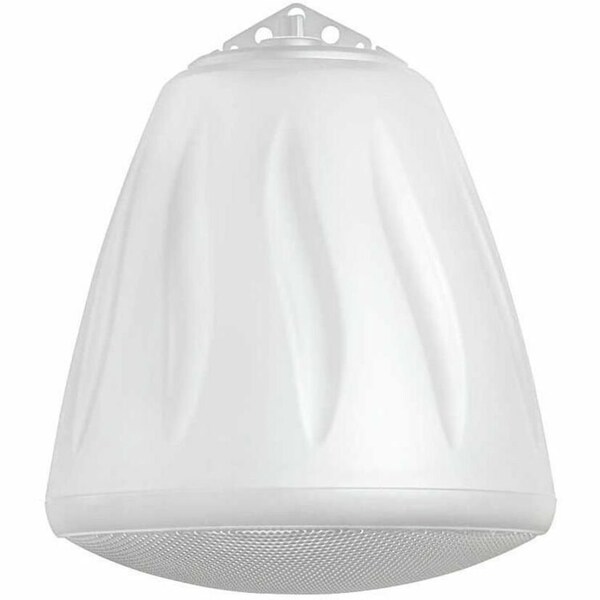

Soundtube Speaker, White, 20 Max. Wattage RS4-EZ-WH - main

Speaker, White, 20 Max. Wattage

  • Mfr # RS4-EZ-WH

  • Zoro # G3925107

product price: $187.99
/ea
Free Shipping & Returns

Key Features

Type
Indoor Pendant
Standards
CE Compliant, RoHS, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS4-EZ-WH
Zoro #
G3925107
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
10
Overall Height (In.)
11
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
4 in
Overall Width (In.)
10
Overall Width
7 3/4 in
Overall Depth
7 3/4 in
Woofer Diameter
4 in
Overall Height
8 3/4 in
Tweeter Diameter
1 in

Details

Item
Speaker
Type
Indoor Pendant
Standards
CE Compliant, RoHS, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Sensitivity (dB)
90 dB
Weight (Lbs.)
6
Tweeter Composition
Paper
Woofer Composition
Treated Paper
Max. Wattage
20 W
Impedance (Ohms)
8 ohm
Transformer Settings
25V/70V/100V
Power Taps @ 25V
2
Power Taps @ 75V
20
Frequency Response
100Hz to 22KHz
Watt (RMS)
20
Number of Channels
1
Housing Color
White
Power Style
Passive
Enclosure Style
Pendant
Frequency Response - Maximum
22 kHz
Impedance
8 ohm
Frequency Response - Minimum
98 Hz
Compatible Input Voltage
100V, 25V, 70V
Tweeter Material
Paper
Output Wattage - Peak
40 W
Includes Transformer
Transformer Included
Includes Mounting Hardware
Mounting Hardware Included
Sensitivity
90 dB
Transformer Taps @ 25V
2.5 W
Transformer Taps @ 70V
20 W
Driver Configuration
1-Way
Housing Material
ABS Glass Fiber
Woofer Material
Treated Paper
Output Wattage - RMS
20 W
For Location
Indoor, Outdoor
Dispersion - Conical
60 Degrees
Transformer Taps @ Low Voltage
8 ohm
Mounting
Surface

Description

Speaker, Indoor Pendant, Overall Height (In.) 11, Overall Width (In.) 10, Overall Length (In.) 10, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Paper, Woofer Dia. (In.) 4 in, Woofer Composition Treated Paper, 20 Watt (RMS), Max. Wattage 20 W, Sensitivity (dB) 90 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 2 Power Taps @ 25V, 20 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 6
