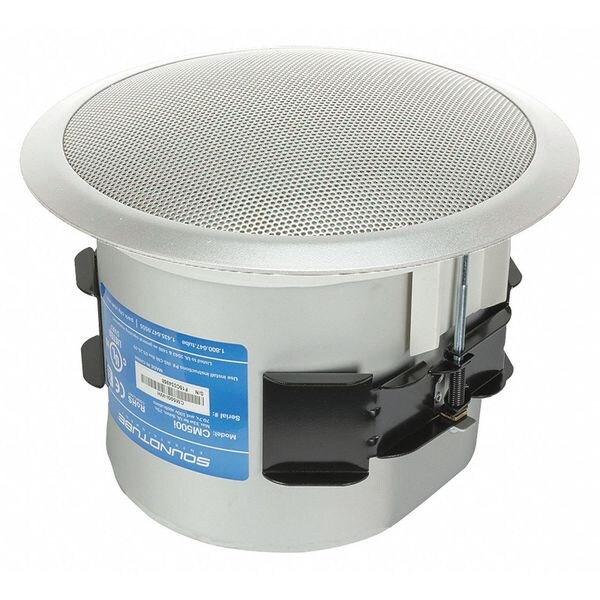

Speaker, White, 75 Max. Wattage

  • Mfr # CM500I-WH

  • Zoro # G3922088


product price: $455.99
/ea
Free Shipping & Returns

Key Features

Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CM500I-WH
Zoro #
G3922088
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
14
Overall Height (In.)
16
Tweeter Dia. (In.)
1 in
Woofer Dia. (In.)
5 1/4 in
Depth
7.8"
Width
10.7"
Overall Width (In.)
14
Tweeter Diameter
1 in
Overall Width
10 3/4 in
Overall Depth
10 3/4 in
Overall Height
8 3/4 in
Woofer Diameter
5 1/4 in

Details

Item
Speaker
Type
In Ceiling
Standards
CE Compliant, RoHS, UL1480A, UL2043
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Conduit Plate, Euroblock, Grille, Paint Mask, Tile Bridge
Sensitivity (dB)
87 dB
Weight (Lbs.)
13
Tweeter Composition
Aluminum
Max. Wattage
75 W
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Power Taps @ 75V
33
Power Taps @ 25V
4
Frequency Response
75Hz to 22KHz
Watt (RMS)
75
Transformer Settings
25v/70v/100v
Number of Channels
1
Includes Mounting Hardware
Mounting Hardware Included
Frequency Response - Maximum
22 kHz
Tweeter Material
Titanium
Enclosure Style
Backcan
Transformer Taps @ Low Voltage
8 ohm
Impedance
8 ohm
Includes Transformer
Transformer Included
Housing Color
White
Sensitivity
83 dB
Mounting Style
Flush Mount
Dispersion - Conical
105 Degrees
Power Style
Passive
Housing Material
ABS Glass Fiber
Transformer Taps @ 25V
5 W
Transformer Taps @ 70V
33 W
Frequency Response - Minimum
55 Hz
Driver Configuration
2-Way
Output Wattage - RMS
75 W
Compatible Input Voltage
100V, 25V, 70V
For Location
Indoor
Woofer Material
Polypropylene
Output Wattage - Peak
150 W
Mounting
in-ceiling

Description

Speaker, In Ceiling, Overall Height (In.) 16, Overall Width (In.) 14, Overall Length (In.) 14, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Aluminum, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 87 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25v/70v/100v, 4 Power Taps @ 25V, 33 Power Taps @ 75V, Frequency Response 75Hz to 22KHz, Weight (Lbs.) 13
