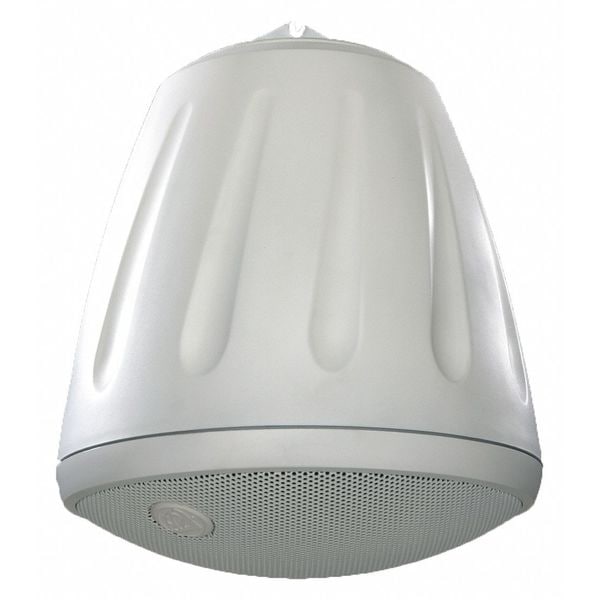

Speaker, White, 75 Max. Wattage

  • Mfr # RS500I-WH

  • Zoro # G3924991


product price: $437.99
/ea
Free Shipping & Returns

Key Features

Type
Indoor Pendant
Standards
CE Compliant, MIL Spec, RoHS, UL1480A, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RS500I-WH
Zoro #
G3924991
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In.)
12
Overall Height (In.)
15
Woofer Dia. (In.)
5 1/4 in
Tweeter Dia. (In.)
1 in
Depth
11.7"
Width
9.7"
Overall Width (In.)
12
Woofer Diameter
5 1/4 in
Tweeter Diameter
1 in
Overall Height
11 1/2 in
Overall Depth
9 3/4 in
Overall Width
9 3/4 in

Details

Item
Speaker
Type
Indoor Pendant
Standards
CE Compliant, MIL Spec, RoHS, UL1480A, UL2239
Indoor/Outdoor
Indoor
Enclosure Material
Plastic/Metal
Enclosure Color
White
Includes
Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Sensitivity (dB)
87 dB
Weight (Lbs.)
12
Tweeter Composition
Paper
Max. Wattage
75 W
Impedance (Ohms)
8 ohm
Woofer Composition
Polypropylene/Butyl
Watt (RMS)
75
Frequency Response
100Hz to 22KHz
Power Taps @ 75V
33
Transformer Settings
25V/70V/100V
Power Taps @ 25V
4
Number of Channels
1
Output Wattage - Peak
150 W
Impedance
8 ohm
Transformer Taps @ 70V
33 W
For Location
Indoor, Outdoor
Output Wattage - RMS
75 W
Enclosure Style
Pendant
Frequency Response - Minimum
60 Hz
Includes Transformer
Transformer Included
Transformer Taps @ Low Voltage
4 ohm
Transformer Taps @ 25V
5 W
Dispersion - Conical
105 Degrees
Frequency Response - Maximum
22 kHz
Includes Mounting Hardware
Mounting Hardware Included
Compatible Input Voltage
100V, 25V, 70V
Driver Configuration
2-Way
Sensitivity
83 dB
Woofer Material
Polypropylene
Tweeter Material
Aluminum
Housing Color
White
Power Style
Passive
Housing Material
ABS Glass Fiber
Mounting
Ceiling

Description

Speaker, Indoor Pendant, Overall Height (In.) 15, Overall Width (In.) 12, Overall Length (In.) 12, Enclosure Color White, Enclosure Material Plastic/Metal, Tweeter Dia. (In.) 1 in, Tweeter Composition Paper, Woofer Dia. (In.) 5 1/4 in, Woofer Composition Polypropylene/Butyl, 75 Watt (RMS), Max. Wattage 75 W, Sensitivity (dB) 87 dB, Impedance (Ohms) 8 ohm, Transformer Settings 25V/70V/100V, 4 Power Taps @ 25V, 33 Power Taps @ 75V, Frequency Response 100Hz to 22KHz, Weight (Lbs.) 12
