- MFR #
- 68580001
- Zoro #
- G8107714
- UPC #
- 00032886347146
- Country of Origin
- United States
- Item
- Metal Clad Building Cable
- Trade Designation
- MC
- Conductor Material
- Copper
- Number of Conductors
- 2C with Ground
- Wire Color
- Black/Green/White
- Jacket Color
- Silver
- Jacket Material
- Aluminum
- Conductor Design
- Solid
- Insulation Material
- Nylon, PVC
- Voltage
- 600V AC
- Temp. Rating
- 90°C
- Standards
- UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems
- Application
- Indoor
- Max. Amps
- 20 A
- Stranding
- 1
- Packaging
- Coil
- Shielding
- Shielded
- Shielding Material
- Aluminum
- Construction

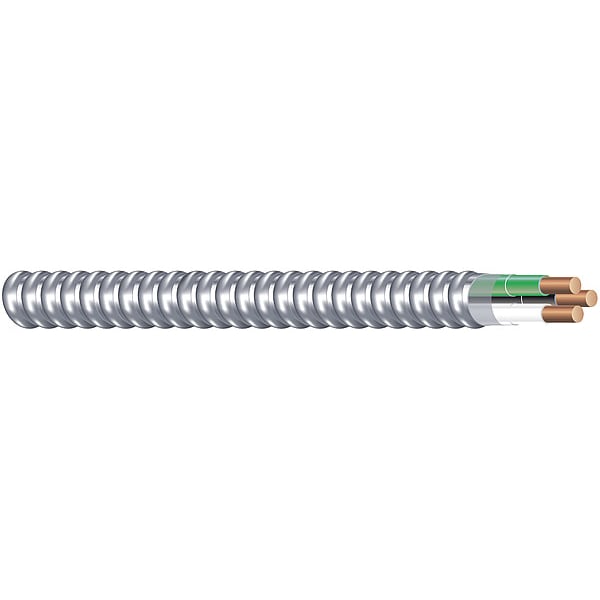

ConstructionSouthwire Armorlite® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
- Applications
ApplicationSouthwire Armorlite® Type MC Cable is suitable for use as follows:Branch, feeder and service power distribution in commercial, industrial, institutional, and multiresidential buildings.Fished or embedded in plaster.Concealed or exposed installationsEnvironmental air-handling spaces per NEC 300.22 (C).Places of Assembly per NEC 518.4 and theaters per NEC 520.5.Installation in cable tray and approved raceways.Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
- Conductor Insulation Color
- Black, White
- Includes Bonding Wire
- No Bonding Wire
- Number of Shielded Pairs
- 0
- Operating Temperature - Minimum
- -6.8 Degrees F
- Grounding Conductor Insulation Color
- Green
- Trade Designation - Conductors
- THHN
- Grounding Conductor Material
- Copper
- Series
- Armorlite(R)
- Number of Strands
- 1
- Number of Neutrals
- 0
- Conductor Insulation Material
- Nylon, PVC
- Hazardous Location Specification
- Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1
- Temperature Rating - Maximum Dry
- 194 Degrees F
- Number of Ground Conductors
- 1
