  11. Thermostat Cable, 250ft, 150V, Gauge 20, CL2

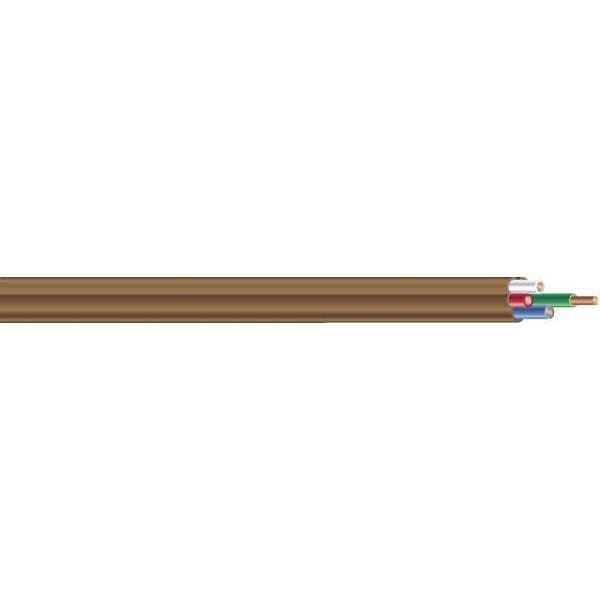

Southwire Thermostat Cable, 250ft, 150V, Gauge 20, CL2 552040407 - main

Thermostat Cable, 250ft, 150V, Gauge 20, CL2

  • Mfr # 552040407

  • Zoro # G1206204

product price: $74.65
/ea

Key Features

Cable Type
Nonplenum
Number of Conductors
4
Wire Size
20 AWG
Jacket Color
Brown
Conductor Design
Solid
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
552040407
Zoro #
G1206204
UPC #
032886024757
Country of Origin
United States

Dimensions

Wire Size
20 AWG
Length
250 ft
Nominal Outside Dia.
0.13 in
Spool/Coil Length
250 ft.
Wire Size - Wire and Cable
20 AWG
Wire Size (Wire and Cable)
20 AWG
Length (Straight Wireway)
250 ft
Insulation Thickness (Mils)
5mils
Size (Awg or Kcmil)
20 AWG
Nominal Outside Diameter
0.13 in
Overall Length
250 ft
Conductor Size
20 AWG

Details

Item
Thermostat Wire
Cable Type
Nonplenum
Number of Conductors
4
Jacket Color
Brown
Conductor Design
Solid
Temp. Rating
140 Degrees F
Voltage
150 V
Standards
NEC 725, UL Listed
Cable Rating
CL2
Package Type
Spool
Cable Type (Wire and Cable)
Non Plenum
Cable Type - Wire and Cable
Non Plenum
Wire and Cable Item
Thermostat Cable
Max. Temp.
60 Degrees C
Nom. Od (Mils)
132mils
No. of Conductors
4
Construction
ConstructionSolid copper conductors with 6 mils of PVC insulationConductors are covered with a PVC jacket, Brown or WhiteRipcord
No. of Strands
1
Applications
ApplicationThermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications from floor to floor and up access shafts without conduit
Inner Wire Jacket Color
Blue, Green, Red, White
Conductor Insulation Material
HDPE
Conductor Material
Copper
Trade Designation
CL2
Shielding
Unshielded
Fire Resistance Rating
Not Rated
Temperature Rating - Maximum Dry
140 Degrees F
Jacket Material
PVC
Conductor Insulation Color
Blue, Green, Red, White
Packaging
Spool

Description

Thermostat Wire, Number of Conductors 4, Wire Size 20 AWG, Cable Type Nonplenum, Jacket Color Brown, Length 250 ft, Voltage 150 V, Conductor Design Solid, Cable Rating CL2

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
