  11. THHN Building Wire, Copper, 10 AWG, 1C, Pink, Stranded, 500 ft

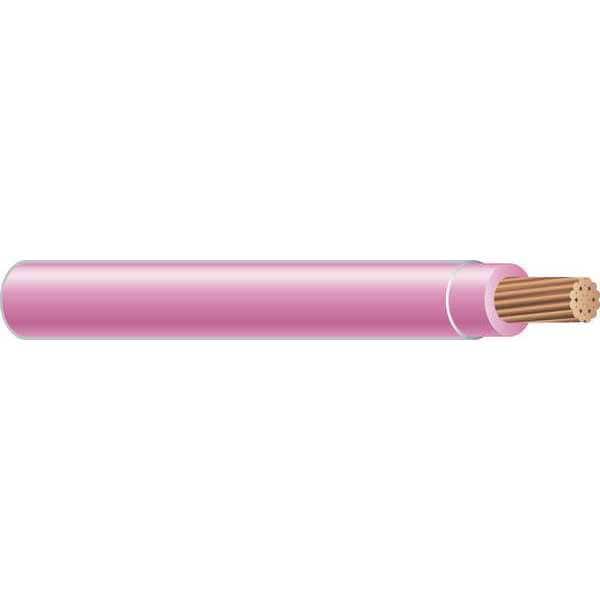

Southwire THHN Building Wire, Copper, 10 AWG, 1C, Pink, Stranded, 500 ft 26053901 - main

THHN Building Wire, Copper, 10 AWG, 1C, Pink, Stranded, 500 ft

  • Mfr # 26053901

  • Zoro # G0209501

product price: $250.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
THHN
Wire Size
10 AWG
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Pink
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
26053901
Zoro #
G0209501
UPC #
032886230653
Country of Origin
United States

Dimensions

Wire Size
10 AWG
Length
500 ft
Nominal Outside Dia.
0.16 in
Jacket Thickness (Mils)
5mils
Insulation Thickness (Mils)
20mils
Minimum Bend Radius
11/16 in
Overall Length
500 ft
Conductor Size
10 AWG
Nominal Outside Diameter
0.16 in

Details

Item
Building Wire
Trade Designation
THHN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Pink
Jacket Color
Pink
Jacket Material
Nylon
Conductor Design
Stranded
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed
Packaging
Spool
Stranding
19
Max. Amps
30
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Construction
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C
30
Applications
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Conductor Insulation Color
Pink
Fire Resistance Rating
Not Rated
Temperature Rating - Maximum Wet
167 Degrees F
Conductor Insulation Material
Nylon, PVC
Number of Strands
19
Temperature Rating - Maximum Dry
194 Degrees F

Description

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Pink, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 19

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
