Shop SOUTHWIRE

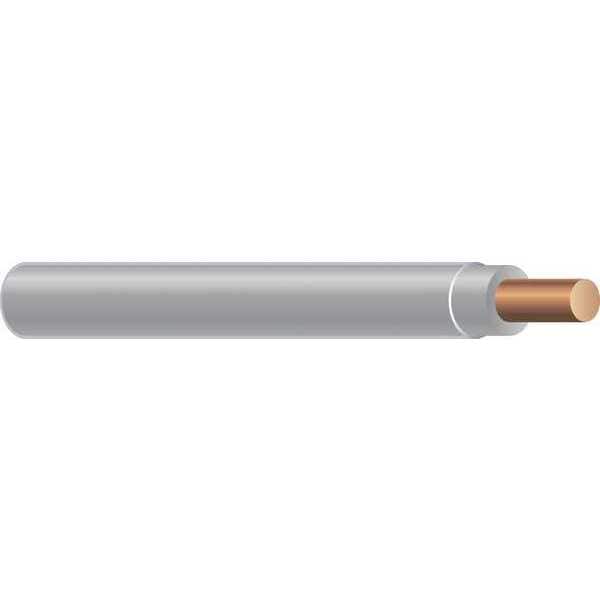

THHN Building Wire, Copper, 14 AWG, 1C, Gray, Solid, 500 ft

  • Mfr # 21466801

  • Zoro # G0184335

product price:  $98.39
/ea

Key Features

Trade Designation
THHN
Wire Size
14 AWG
Conductor Material
Copper
Number of Conductors
1C
Jacket Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
21466801
Zoro #
G0184335
UPC #
032886223600
Country of Origin
United States

Dimensions

Wire Size
14 AWG
Length
500 ft
Nominal Outside Dia.
0.1 in
Insulation Thickness (Mils)
15mils
Jacket Thickness (Mils)
5mils
Overall Length
500 ft
Minimum Bend Radius
3/8 in
Conductor Size
14 AWG
Nominal Outside Diameter
0.1 in

Details

Item
Building Wire
Trade Designation
THHN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Gray
Jacket Color
Gray
Jacket Material
Nylon
Conductor Design
Solid
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed, E34382
Packaging
Spool
Stranding
1
Max. Amps
15 A
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Applications
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.
Construction
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Allowable Ampacity At 75C
15
Fire Resistance Rating
Not Rated
Conductor Insulation Color
Gray
Temperature Rating - Maximum Dry
194 Degrees F
Number of Strands
1
Temperature Rating - Maximum Wet
167 Degrees F
Conductor Insulation Material
Nylon, PVC

Description

Building Wire, Trade Designation THHN, Wire Size 14 AWG, Wire Color Gray, Length 500 ft, Conductor Design Solid, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.1 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 1

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
