Shop SOUTHWORTH

Scissor Lift Table, 1500 lb. Cap, 115V, 24"W, 48"L

  • Mfr # LL1.5-35-2448

  • Zoro # G0688810

product price:
$
5,444.99
/ea
Additional $180.00 delivery surcharge applies per item.
See details

Key Features

Lift Table Item
Scissor Lift Table
Mobile/Stationary
Stationary
Lift Mechanism
Hydraulic
Lift Mobility
Electric Lift
Lift Control
Foot Control
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LL1.5-35-2448
Zoro #
G0688810
UPC #
-
Country of Origin
United States

Dimensions

Lifting Height Max.
41 1/4 in
Lifting Height Min.
6 1/4 in
Platform Length
48 in
Platform Width
24 in
Raised Height
41-1/4 in
Lowered Height
6-1/4 in
Overall Length
48 in
Overall Height
41 1/4 in
Overall Width
24 in
Maximum Lifting Height
41 1/4 in
Minimum Lifting Height
6 1/4 in
Cord Length
10 ft
Wire Rope Length
48 in
Length
48 in

Details

Lift Table Item
Scissor Lift Table
Mobile/Stationary
Stationary
Lift Mechanism
Hydraulic
Lift Mobility
Electric Lift
Lift Control
Foot Control
Lift Table Platform Style
Fixed
Load Capacity
1,500 lb
Item
Scissor Lift Table
HP
1/2
Up Speed Seconds
32 sec
Frame Material
Steel
Phase
1
Lift Voltage
115V AC
Platform Style
Fixed
Includes
Footswitch
Powered By
Electric
Number of Posts
0
Voltage
115V AC
Power Source
Electric
Maximum Load Capacity
1,500 lb
Platform Material
Steel
Number of Lifting Posts
0
Motor Horsepower
1/2 hp
Platform Gauge
11 ga
Up Speed Time
32 sec
Operating Voltage
115V AC
Power Source - TS Only
Electric
Power Source - old
Electric

Description

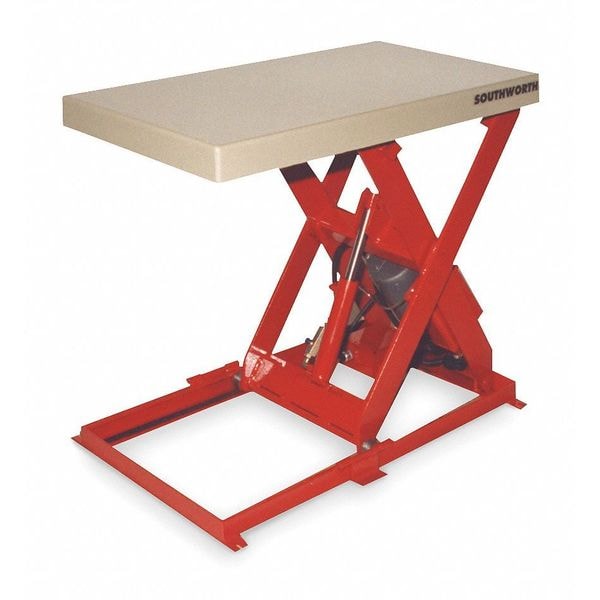

This Southworth scissor lift table has a maximum load capacity of 1,500 lb and features a hydraulic lift mechanism powered by a 1/2 hp electric motor, controlled via footswitch. It operates on 115V AC, single phase, with an up-speed time of 32 seconds. The unit includes a footswitch and has a 10 ft cord length. The platform is fixed style, constructed of 11 ga steel, measuring 48 in long by 24 in wide. The frame is steel construction with 0 lifting posts. Lifting height ranges from 6-1/4 in (lowered) to 41-1/4 in (raised), with overall dimensions of 48 in L x 24 in W x 41-1/4 in H. Manufactured in the United States, this is a stationary unit (not mobile). Specifications Load Capacity: 1,500 lb (max) Platform Dimensions: 48 in L x 24 in W Platform Material: Steel | Platform Gauge: 11 ga Lift Mechanism: Hydraulic | Powered By: Electric | Motor: 1/2 hp Voltage: 115V AC | Phase: 1 Lift Control: Foot Control | Includes: Footswitch Up Speed Time: 32 sec Lifting Height: 6-1/4 in (min) to 41-1/4 in (max) Overall Dimensions: 48 in L x 24 in W x 41-1/4 in H Frame Material: Steel Country of Origin: United States
