  11. Scissor Lift Table, 3500 lb. Cap, 115V, 48"W, 48"L

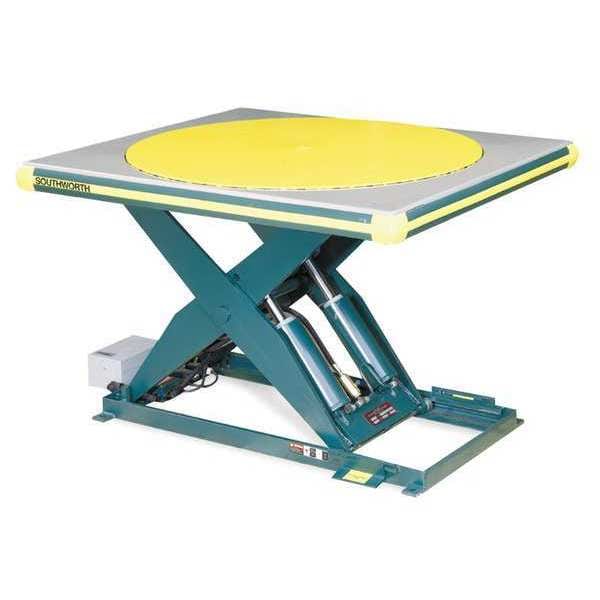

Southworth Scissor Lift Table, 3500 lb. Cap, 115V, 48"W, 48"L LS-4-36-4848-FTT - main

Scissor Lift Table, 3500 lb. Cap, 115V, 48"W, 48"L

  • Mfr # LS-4-36-4848-FTT

  • Zoro # G1802538

product price: $9,405.99
/ea
Item requires special delivery charges. A $400.00 per item surcharge will be applied.

Key Features

Lift Table Item
Scissor Lift Table
Mobile/Stationary
Stationary
Lift Mechanism
Hydraulic
Lift Mobility
Electric Lift
Lift Control
Foot Control
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-4-36-4848-FTT
Zoro #
G1802538
UPC #
-
Country of Origin
United States

Dimensions

Lifting Height Max.
43 5/8 in
Lifting Height Min.
7 5/8 in
Platform Length
48 in
Raised Height
43-5/8 in
Platform Width
48 in
Lowered Height
7-5/8 in
Overall Width
48 in
Overall Height
44 1/8 in
Overall Length
48 in
Maximum Lifting Height
44 1/8 in
Cord Length
10 ft
Minimum Lifting Height
8 1/8 in

Details

Lift Table Item
Scissor Lift Table
Mobile/Stationary
Stationary
Lift Mechanism
Hydraulic
Lift Mobility
Electric Lift
Lift Control
Foot Control
Lift Table Platform Style
Turntable
Load Capacity
3,500 lb
Item
Scissor Lift Table
Platform Style
Turntable
Up Speed Seconds
42 sec
Frame Material
Steel
Includes
10 ft Control Cord, Foot Control with Safety Cover, Molded Edge Platform, Power Cord
Lift Voltage
115V AC
Phase
1
Powered By
Electric
Voltage
115V AC
Number of Posts
0
HP
1
Power Source
Electric
Up Speed Time
42 sec
Motor Horsepower
1 hp
Platform Material
Steel
Number of Lifting Posts
0
Maximum Load Capacity
4,000 lb
Platform Gauge
3/8 in
Operating Voltage
115V AC

Description

This item is a stationary hydraulic scissor lift table powered by an electric motor and controlled by a foot-operated control. It features a steel turntable-style platform that raises and lowers within a defined height range to support vertical positioning of loads. The unit operates on 115V AC single-phase power and uses a hydraulic lift mechanism housed within a steel frame.

Key Features:

  • Lift Type: Stationary hydraulic scissor lift table.
  • Load Capacity: Rated load capacity of 3,500 lb, with a listed maximum capacity of 4,000 lb.
  • Lifting Range: Lifting height range from approximately 7-5/8 in lowered to 43-5/8 in raised.
  • Platform Configuration: 48 in x 48 in steel turntable-style platform with a 3/8 in plate thickness.
  • Power and Motor: Electric-powered lift with a 1 hp motor operating on 115V AC, single-phase power.
  • Lift Speed: Upward travel time specified at 42 seconds.
  • Controls: Foot-operated lift control connected by a 10 ft control cord.
  • Construction: Steel frame and platform construction.
