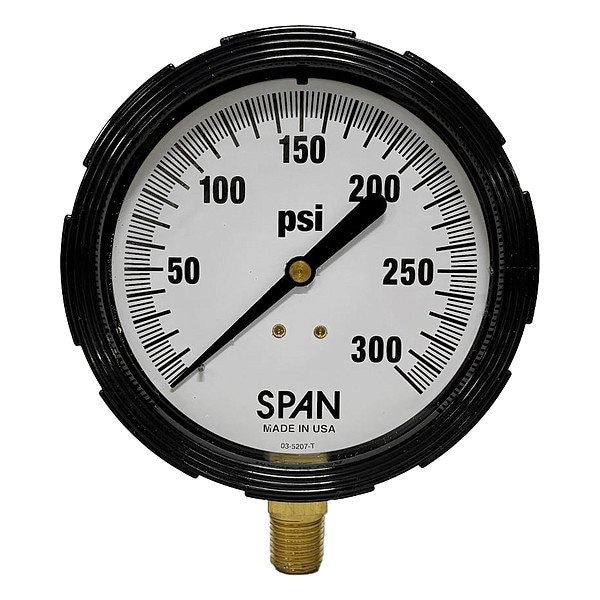

Industrial Pressure Gauge, 1/4 in NPT, Bottom Location

Mfr # LFS310-300-PSI-G-QC-CERT
Zoro # G715544476

88.19

Key Features

Accuracy

+/-1.0%

Process Connection Location

Bottom

Process Connection Size

1/4 in

Process Connection Type

NPT

Series

Span

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LFS310-300-PSI-G-QC-CERT
Zoro #: G715544476
UPC #: -
Country of Origin: United States

Dimensions

Process Connection Size: 1/4 in
Case Diameter: 3.2 in
Case Depth: 1.41 in
Nominal Dial Diameter: 3 1/2 in

Details

Item: Industrial Pressure Gauge
Accuracy: +/-1.0%
Process Connection Location: Bottom
Process Connection Type: NPT
Series: Span
Lens Material: Acrylic
Primary Scale Units: psi
Liquid-Filled Case: Yes
Panel-Mountable: No
Case Color: Black
Standards: ANSI/ASME B40.1
Case Material: Zytel Nylon
Socket Material: Brass
Pointer Color: Black
Pressure Range Type: Compound
Primary Scale Minor Graduations: 5
Dial Color: White
Process Connection Gender: Male
Sensor Material: Copper Alloy
Resistance Properties: Corrosion Resistant
Compatible with Brand: SPAN
Dry Dampening Feature: PLUS! Performance
Includes Calibration Certificate: NIST with Data
Pressure Gauge Type: Industrial Pressure Gauge
Dial Face Material: Aluminum
Compatible with Series: Universal
Primary Scale Vacuum Measurement - Minimum: 0 psi
Case Liquid: Glycerin
Field Fillable: Yes
Operating Temperature - Maximum: 150 Degrees F
Removable Bezel: Yes
IP Rating: IP65
Primary Scale Pressure Measurement - Minimum: 0 psi
Primary Scale Pressure Measurement - Maximum: 300 psi
Primary Scale Vacuum Measurement - Maximum: 300 psi
Non-Sparking: No
Accuracy Grade: ANSI/ASME B40.1
Pointer Material: Aluminum
Process Media Temperature - Minimum: -40 Degrees F
NEMA Enclosure Rating: 4
Operating Temperature - Minimum: -40 Degrees F
Primary Scale Numeric Increments: 50
Process Media Temperature - Maximum: 140 Degrees F
Bezel Material: Zytel Nylon
Freeze Resistant Movement: Yes

Description

Pressure Gauge
