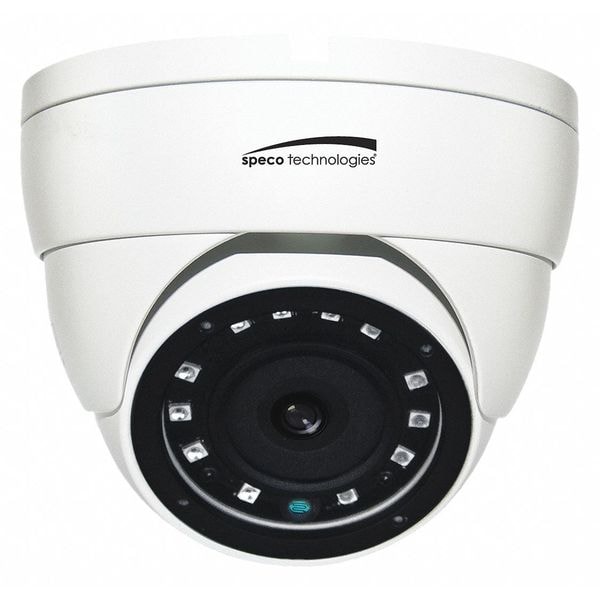

Camera, Eyeball, 3-45/64" Dia., Fixed Lens

Mfr # VLDT4W
Zoro # G5087831

83.99

Key Features

For Use With

DVRs

Includes

Junction Box

HD Resolution

1920 x 1080, Yes

Field of View

83 Degrees (±3 Degrees)

Camera Design

Dome

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VLDT4W
Zoro #: G5087831
UPC #: 030519022958
Country of Origin: China

Dimensions

Dia. (In.): 3 45/64 in
Height (In.): 3 5/32 in
Focal Length (mm): 3.6 mm
IR Illuminator Wavelength: 850 nm
Width: 3.7"
Focal Length: 3.60 mm
Height: 3.2"
Overall Height: 3 1/8 in
Overall Diameter: 3 3/4 in
Minimum Focal Length: 3.6 mm
Maximum Focal Length: 3.6 mm

Details

For Use With: DVRs
Item: Camera
Includes: Junction Box
HD Resolution: 1920 x 1080, Yes
Field of View: 83 Degrees (±3 Degrees)
Camera Design: Dome
Lens: Fixed
Camera Resolution: 2 Megapixel
Connector Type: Wired
Line Resolution: 2 MP
Power Consumption: 400 mA
Power Supply: Not included
Day/Night Capable: Day/Night
Type: Eyeball
Luminance Factor: 0 lux
Display: Color
Exposure Conditions: -22 Degrees to 140 Degrees F
Detection Range: 0 to 65 ft
Indoor/Outdoor: Indoor, Outdoor
Illumination: 18 IR LEDs @ 65 ft
Scanning: Progressive
Features: AHD, Analog Outputs, CVBS, CVI, Full OSD Operation Through UTC Control, IP66, Multi-Format HD Supports HD-TVI
Voltage: 12V DC
Mount: Ceiling, Surface, Wall
Camera Body Color: White
Pixels: 1920 x 1080
Digital Video Camera Image Sensor: 1/2.9 CMOS
Min. Light Level (Lux): 0 lux
S/N Ratio: More than 50dB
Standards: NDAA Compliant
Color: White
IP Rating: IP66
Input Voltage: 12 V DC
Mounting: Junction Box Mount
Weight: 11.64 oz
Indoor/Outdoor Usage: Outdoor
Minimum Viewing Angle: 69 Degrees
Lens Type: Fixed
Housing Material: Metal Alloy
Minimum Operating Temperature: -22 Degrees F
Maximum Detection Distance: 65 ft
Minimum Light Level: 0 lux
Input Type: No Inputs Included
Resolution: 2MP
Output Type: AHD, CVBS, CVI, TVI
Maximum Operating Temperature: 104 Degrees F
Resistance Properties: Weather Resistant
Image Sensor: 1/2.9 CMOS
Night Capable: Day and Night
Includes Power Supply: No
Body Color: White
Maximum Viewing Angle: 69 Degrees
Color Display: Black and White, Color
Operating Voltage: 12V DC

Description

Camera, Body Color White, Maximum Focal Length 3.6 mm, Minimum Focal Length 3.6 mm, Camera Design Dome, Maximum Viewing Angle 69 Degrees , Minimum Viewing Angle 69 Degrees , Mounting Location Ceiling, Surface, Wall, Color Display Black and White, Color, Maximum Detection Distance 65 ft, Features AHD, Analog Outputs, CVBS, CVI, Full OSD Operation Through UTC Control, IP66, Multi-Format HD Supports HD-TVI, Lens Type Fixed, Resolution 2MP, For Use With DVRs, Housing Material Metal Alloy
