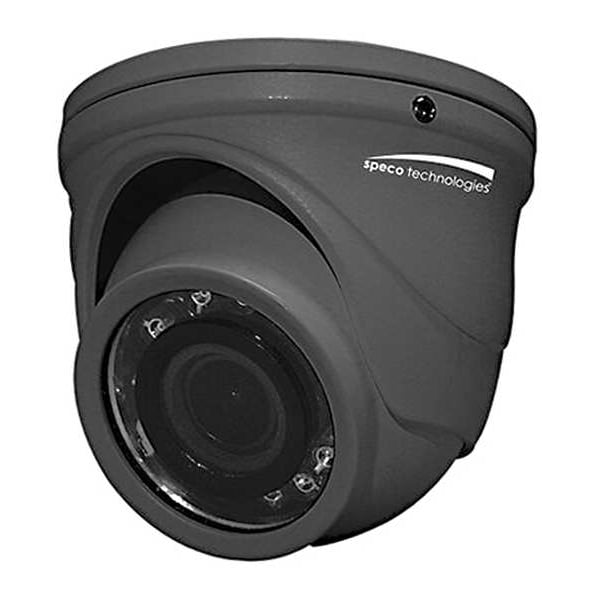

HD-TVI 4MP IR Mini-Turret Camera, 2.9mm Lens, Dark Gray Housing

  • Mfr # HT471TG

  • Zoro # G0896483


product price: $139.99
/ea
Free Shipping & Returns

Key Features

Green Certification or Other Recognition
RoHS
Resolution
4MP
Standards
NDAA Compliant
Includes
(12) IR LEDs, Mounting Hardware
Height (In.)
2 5/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HT471TG
Zoro #
G0896483
UPC #
030519027151
Country of Origin
Korea, Republic of

Dimensions

Height (In.)
2 5/32 in
Focal Length (mm)
2.9 mm
Dia. (In.)
2 23/64 in
Height
2.2"
Diameter
2.4"
Overall Height
2 1/8 in
Overall Diameter
2 3/8 in
Maximum Focal Length
2.9 mm
IR Illuminator Wavelength
850 nm

Details

Item
Camera
Green Certification or Other Recognition
RoHS
Resolution
4MP
Standards
NDAA Compliant
Includes
(12) IR LEDs, Mounting Hardware
Indoor/Outdoor
Indoor, Outdoor
Camera Body Color
Dark Gray
Min. Light Level (Lux)
0 lux
S/N Ratio (dB)
More than 50
Scanning
Progressive
Power Supply
Not Included
Voltage
12V DC
Features
5 yr Warranty, Cast Aluminum Construction, Compact Size, Full OSD Operation, IP66 Compliant, Signal Distance up to 1600 ft, Vandal Resistant
Digital Video Camera Image Sensor
1/3 CMOS
Power Consumption
200 mA
Day/Night Capable
Day/Night
Type
Turret
Detection Range
0 to 35 ft
Line Resolution
4 MP
Lens
Fixed
Exposure Conditions
14 Degrees to 120 Degrees F
Pixels
2184 x 2202
For Use With
DVRs, Monitors
Mount
Ceiling, Surface, Wall
Color
Gray
Indoor/Outdoor Usage
Outdoor
Minimum Viewing Angle
90 Degrees
Body Color
Gray
Color Display
Black and White, Color
Camera Design
Dome
Maximum Viewing Angle
90 Degrees
Minimum Light Level
0 lux
Maximum Operating Temperature
120 Degrees F
Minimum Operating Temperature
14 Degrees F
Includes Power Supply
No
Night Capable
Day and Night
Maximum Detection Distance
35 ft
Output Type
TVI
Resistance Properties
Weather Resistant
Input Type
No Inputs Included
Housing Material
Aluminum
S/N Ratio
More than 50dB
Lens Type
Fixed
Image Sensor
1/3 CMOS
IP Rating
IP66
Operating Voltage
12V DC

Description

Camera, Body Color Gray, Maximum Focal Length 2.9 mm, Camera Design Dome, Maximum Viewing Angle 90 Degrees , Minimum Viewing Angle 90 Degrees , Mounting Location Ceiling, Surface, Wall, Color Display Black and White, Color, Maximum Detection Distance 35 ft, Features 5 yr Warranty, Cast Aluminum Construction, Compact Size, Full OSD Operation, IP66 Compliant, Signal Distance up to 1600 ft, Vandal Resistant, Lens Type Fixed, Resolution 4MP, For Use With DVRs, Monitors, Housing Material Aluminum
