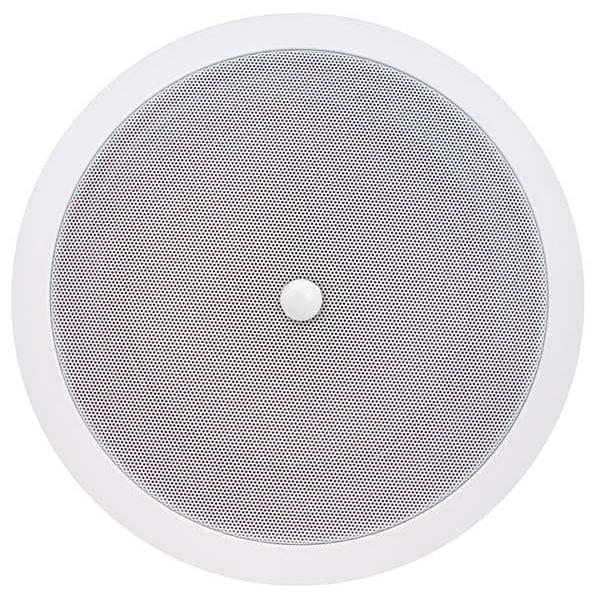

Speaker, Transformer And Volume Control

  • Mfr # SPG86TC

  • Zoro # G5009225


product price: $49.39
/ea

Key Features

Enclosure Color
White
Max. Wattage
15 W
Sensitivity (dB)
91 +/-3 dB
Color
White
Woofer Composition
Treated Paper
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPG86TC
Zoro #
G5009225
UPC #
030519001588
Country of Origin
China

Dimensions

Diameter
8"
Woofer Dia. (In.)
8 in
Overall Width (In.)
10-3/4 in
Overall Height (In.)
3-1/5 in
Overall Length (In.)
10-3/4 in
Overall Width
10 3/4 in
Overall Height
3 1/4 in
Woofer Diameter
8 in
Overall Depth
3 1/2 in

Details

Enclosure Color
White
Item
Speaker w/Transformer
Max. Wattage
15 W
Sensitivity (dB)
91 +/-3 dB
Color
White
Woofer Composition
Treated Paper
Watt (RMS)
10 W
Frequency Response
90 Hz to 20 kHz
Impedance (Ohms)
8 ohm
Type
Ceiling Speaker
Transformer Settings
0.5 W & 0.25 W, 1 W, 2.5 W, 5 W
Standards
NDAA Complaint
Impedance
8 ohm
Sensitivity
91 dB
Includes
Mounting Bracket
For Location
Indoor
Mounting Style
Surface Mount
Power Style
Powered
Output Wattage - RMS
10 W
Dispersion - Conical
120 Degrees
Housing Material
Polystyrene
Driver Configuration
2-Way
Output Wattage - Peak
15 W
Transformer Taps @ Low Voltage
8 ohm
Frequency Response - Minimum
90 Hz
Woofer Material
Paper
Transformer Taps @ 25V
0.25 W, 0.5 W, 1 W, 2.5 W, 5 W
Transformer Taps @ 70V
0.25 W, 0.5 W, 1 W, 2.5 W, 5 W
Compatible Input Voltage
25V, 70V
Frequency Response - Maximum
20 kHz
Housing Color
Off-White

Description

Speaker with Transformer, Ceiling, Overall Height (In.) 3 1/5 in, Overall Width (In.) 10 3/4 in, Overall Length (In.) 10 3/4 in, Enclosure Color White, Woofer Dia. (In.) 8 in, Woofer Composition Treated Paper, 10 W Watt (RMS), Max. Wattage 15 W, Sensitivity (dB) 91 +/-3, Impedance (Ohms) 8 ohm, Transformer Settings 0.5 W & 0.25 W, 1 W, 2.5 W, 5 W, Frequency Response 90Hz~20kHz, Includes Mounting Bracket
