Speedaire

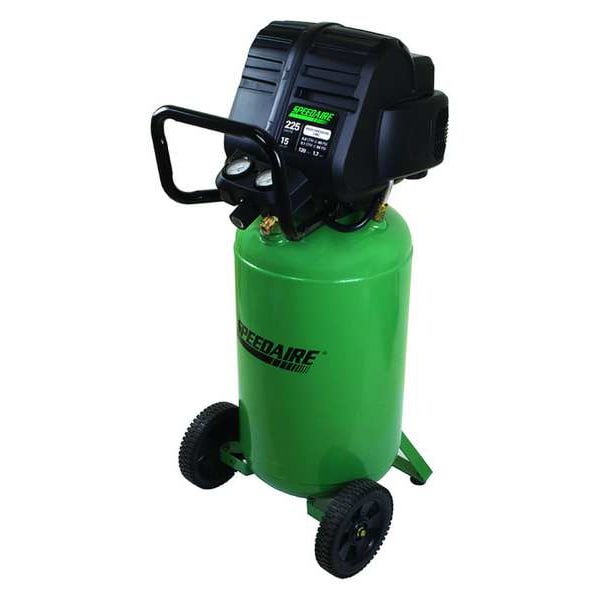

1.7 HP 225 PSI Portable Electric Vertical Air Compressor 120VAC

product price: $682.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Tank Size 15 gal.
  • Voltage 120VAC
  • Max. Pressure 225 psi
  • HP 1.7
  • Tank Type Vertical
See all product information

Product Information

Dimensions

Tank Size 15 gal.
Overall Length 17 in
Overall Height 42 in
Overall Width 18 in
Tank Size - Air Compressor 15 gal
Air Tank Size 15 gal
Outlet Size 1/4 in

Details

Voltage 120VAC
Max. Pressure 225 psi
HP 1.7
Tank Type Vertical
Free Air CFM @ Max. Pressure 2.3
Compressor Type Portable Air Compressor
Weight 99 lb
Standards CSA
Tank Style - Air Compressor Vertical
dBA @ 3 Feet 78
Input Voltage - Air Compressor 120V AC
Avg. Pump Life 500 hr
(F)NPT Outlet 1/4 in
Cylinder Material Steel
Item - Air Compressor Portable Air Compressor
Weight - Air Compressor 99 lb
Free Air CFM @ Max. Pressure - Air Compressor 2.3
Motor Type UMC
Free Air CFM @ 90 PSI - Air Compressor 5.1
Free Air CFM @ 90 PSI 5.1
Lubrication Type Oil Free
Item Portable Air Compressor
Lubrication Type - Air compressor Oil Free
HP - Air Compressor 1.7 hp
Full Load Amps 15.0
Max. Pressure - Air Compressor 225 psi
Motor RPM 3,450 RPM
Free Air Flow Rate @ Maximum Pressure 2.30 cfm
Electrical Connection Cord with Plugs
Thermal Protection Automatic Reset
Output Power 1.7 hp
Free Air Flow Rate 5.1 cfm
Control Type Pressure Switch
Outlet Gender Female
Outlet Type NPT
Sound Level 78 dBA
Current Rating 15 A
Maximum Operating Pressure 225 psi
Average Pump Life 500 hr
Maximum Speed 3,450 RPM
Duty Cycle Intermittent
Pump Type Reciprocating
Input Voltage 120V AC
Air Tank Style Vertical

Description

Portable Air Compressor, Lubrication Type Oil Free, Air Tank Style Vertical, Output Power 1.7 hp, Free Air Flow Rate 5.1 cfm, Maximum Operating Pressure 225 psi, Air Tank Size 15 gal, Input Voltage 120V AC, Current Rating 15 A, Sound Level 78 dBA, Weight 99 lb, Free Air Flow Rate @ Maximum Pressure 2.30 cfm, Pump Type Reciprocating, Motor Type UMC
