  6. Air Cylinder, 2 1/2 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel .

This item is Discontinued.

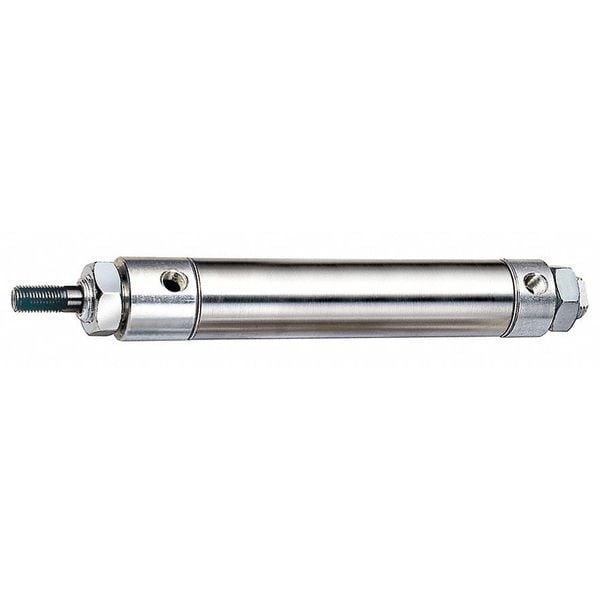

Speedaire Air Cylinder, 2 1/2 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel . 6CPY6

Air Cylinder, 2 1/2 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel . (Discontinued)

  • Mfr # 6CPY6
  • Zoro # G3476767
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6CPY6
Zoro #
G3476767
UPC #
190735679517
Country of Origin
United States

Dimensions

Bore Dia.
2 1/2 in
Rod Dia.
0.625 in
Overall Length
10.94 in
Rod Thread Length
7/8 in
Pivot Hole Dia.
0.376 in
Port Size
1/4 in FNPT
Rod Thread Size
1/2"-20
Dimension A
22/25 in
Dimension Kk
1/2"-20 UNF
Air Cylinder Bore Dia.
2 1/2 in
Dimension Cc
0.625 in
Dimension L
0.56 in
Dimension Cb
0.75 in
Dimension D
0.50 in
Dimension N1
1 3/8"-12
Dimension B
1.50 in
Dimension E
0.75 in
Dimension Cd
0.376 in
Inlet Size
1/4 in
Nose Mount Thread Size
1 3/8"-12
Overall Height
10 15/16 in
Bore Diameter
2 1/2 in
Rod Diameter
5/8 in
Stroke Length
4 in

Details

Item
Air Cylinder
Cylinder Action
Double Acting
Max. Pressure
250 psi
Body Material
Stainless Steel
Tube Material
Stainless Steel
Cylinder Type
Round Body
Magnetic Piston
Non-Magnetic Piston
Stroke
4 in
Mount
Nose and Pivot
Air Cylinder Type
Round Body
Finish
Silver
Cushion Type
None
Air Cylinder Mount
Nose and Pivot
Features
Non-Switch Ready
Single Acting/Double Acting
Double Acting
Nose Mount Thread
1 3/8"-12
Temp. Range
-10 Degrees to 165 Degrees F
Piston Rod Material
Steel
End Cap Material
Aluminum
Piston Material
Aluminum
Inlet Gender
Female
Body Material Finish
Silver Plated
For Fluid Type
Air
Maximum Operating Temperature
165 Degrees F
Piston Rod Material Finish
Chrome Plated
Minimum Operating Temperature
-10 Degrees F
Air Inlet Type
NPT
Cylinder Repair
Non-Repairable
Maximum Operating Pressure
250 psi
System of Measurement
Inch

Description

Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Non-Magnetic Piston, Mounting Type Nose, Pivot, Bore Diameter 2 1/2 in, Cushion Type None, Stroke Length 4 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, System of Measurement Inch, Body Material Finish Silver Plated, Piston Rod Material Finish Chrome Plated, Overall Height 10 15/16 in, Inlet Gender Female
