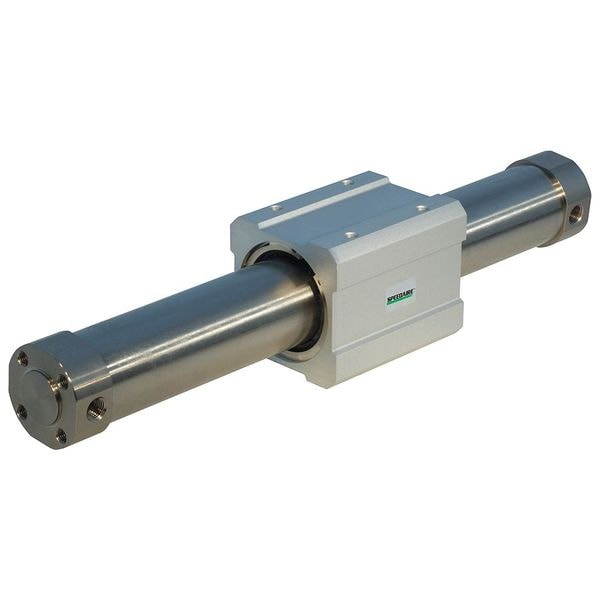

Air Cylinder, 40 mm Bore, 900 mm Stroke, Rodless Double Acting (Discontinued)
- Mfr # CY3B40TN-900
- Zoro # G0150963
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CY3B40TN-900
Zoro #
G0150963
UPC #
190735676448
Country of Origin
Japan
Dimensions
Bore Dia.
40 mm
Overall Length
182 mm
Port Size
1/4 in NPT
Dimension B
70mm
Dimension C
16mm
Dimension A
1,082 mm
Air Cylinder Bore Dia.
40 mm
Overall Height
70 mm
Stroke Length
900 mm
Overall Width
70 mm
Bore Diameter
40 mm
Inlet Size
1/4 in
Description
Air Cylinder, Mounting Style Direct, Bore Diameter 40 mm, Stroke Length 900 mm, Inlet Size 1/4 in, Air Inlet Type NPT, Body Material Aluminum, Magnetic Piston Magnetic Piston, Cushion Type Rubber Bumper, Cylinder Type Rodless, Cylinder Action Double Acting, For Fluid Type Air, System of Measurement Metric, End Cap Material Aluminum, Body Material Finish Anodized, Series CY3B, Standards RoHS Compliant, Includes (2) Mounting Nut, Maximum Operating Pressure 0.7 MPa
Restrictions
Hazardous material
