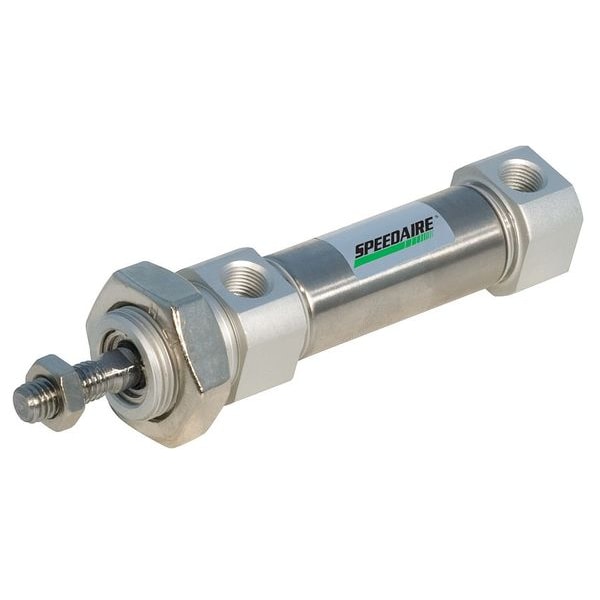

Air Cylinder, 8 mm Bore, 10 mm Stroke, ISO Double Acting, Stainless Steel .
Mfr # CD85F8-10-B
Zoro # G0230526
product price:Â
$
33.99
/ea
Key Features
Cylinder Action
Double Acting
Bore Dia.
8 mm
Max. Pressure
145 psi
Body Material
Stainless Steel
Rod Dia.
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CD85F8-10-B
- Zoro #
- G0230526
- UPC #
- 190735647394
- Country of Origin
- Czechia
Dimensions
- Bore Dia.
- 8 mm
- Rod Dia.
- 4 mm
- Overall Length
- 84 mm
- Rod Thread Length
- 12 mm
- Port Size
- M5 x 0.8 in
- Dimension A
- 62mm + stroke
- Air Cylinder Bore Dia.
- 8 mm
- Rod Thread Size
- M4 x 0.7
- Dimension B
- 12mm
- Dimension D
- M12 x 1.25 in
- Dimension C
- M4 x 0.7 in
- Dimension E
- M5 x 0.8 in
- Bore Diameter
- 8 mm
- Body Diameter
- 12 mm
- End Cap Length
- 9.5 mm
- Rod Diameter
- 4 mm
- Inlet Size
- M5 x 0.8
- Nose Mount Thread Size
- M12 x 1.25
- Stroke Length
- 10 mm
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 8 mm, Cushion Type Rubber Cushion, Stroke Length 10 mm, Inlet Size M5 x 0.8, Air Inlet Type Metric Standard, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Mounting Location Front, Tie Rod Material Not Applicable
Restrictions
Hazardous material
