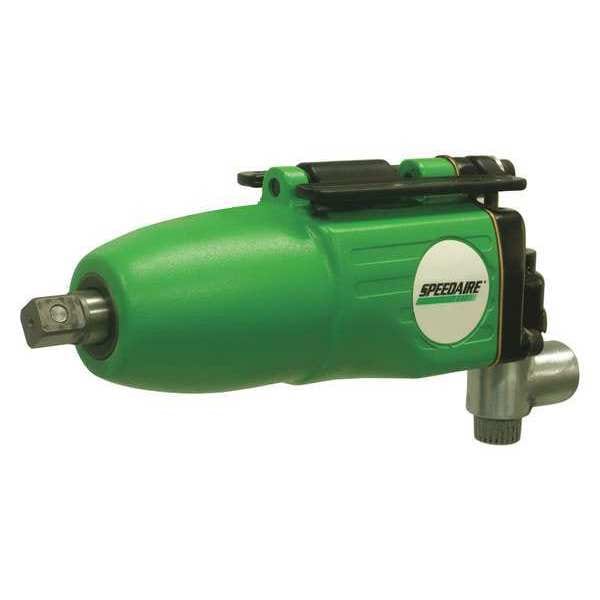

Speedaire Air Impact Wrench, Pin, 12,500 rpm 45NW51 - main

Air Impact Wrench, Pin, 12,500 rpm

  • Mfr # 45NW51

  • Zoro # G2438025

product price: $187.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
3/8"
Free Speed
12,500 RPM
Air Inlet
1/4 in NPT
Handle Type
In-Line
Max. Bolt Capacity
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45NW51
Zoro #
G2438025
UPC #
190735625224
Country of Origin
Japan

Dimensions

Square Drive Size
3/8"
Anvil Length - Air Impacts
0.750"
Min. Hose Size
3/8 in
Air Inlet Size - Air Tools
1/4" NPT
Overall Length
7 in
Drive Size - Air Tools
3/8" Square
Drive Size
3/8 in Square
Extended Anvil Length
3/4 in

Details

Item
Impact Wrench
Free Speed
12,500 RPM
Air Inlet
1/4 in NPT
Handle Type
In-Line
Max. Bolt Capacity
3/8 in
Tool Weight
2 lb
Anvil
Standard
Housing Material
Aluminum Cast
Duty
Industrial
Handle Material
Aluminum Cast
Torque Range
5 to 70 ft.-lb.
Retainer Type - Air Impacts
Pin
Max. Torque
125 ft.-lb.
Required Pressure
90 psi
Blows per Minute - Air Tools
830
Blows per Minute
830
Average CFM @ 15 Second Run Time
2.75
Retainer Type
Pin Detent
Style
Inline
Anvil Type - Air Impacts
Standard
CFM @ Full Load
10.7
Duty Cycle - Air Tools
Industrial Duty
Body Style - Air Tools
In-Line
Item - Air Impact Wrenches
Air Impact Wrench
Max. Air Pressure
90 psi
Number of Speed Settings
3
Power Source
Air Powered
Built-In Light
No
Drive Type
Standard
Clutch Style
Rocking Dog
Impact Rated
No
Min. Air Pressure
70 psi
Air Consumption
11 cfm
Impacts per Minute
830
Duty Rating
Industrial Duty
Air Pressure
90 psi
Exhaust Location
Rear
Breakaway Torque
125 ft-lb
Impact Sound Level
90 dB
Fastening Torque
125 ft-lb
Tool Style
Compact

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 11 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 90 psi, Min. Air Pressure 70 psi, Min. Hose Size 3/8 in, Exhaust Location Rear, Duty Rating Industrial Duty, Breakaway Torque 125 ft-lb, Fastening Torque 125 ft-lb, Free Speed 12,500 RPM, Impact Rated No, Explosive Environment Rated No, Impact Sound Level 90 dB, Impacts per Minute 830, Number of Speed Settings 3, Max. Bolt Capacity 3/8 in, Drive Size 3/8 in
