  11. Air Line Lubricator, 1/2In, 95 cfm, 150 psi
Speedaire

Air Line Lubricator, 1/2In, 95 cfm, 150 psi

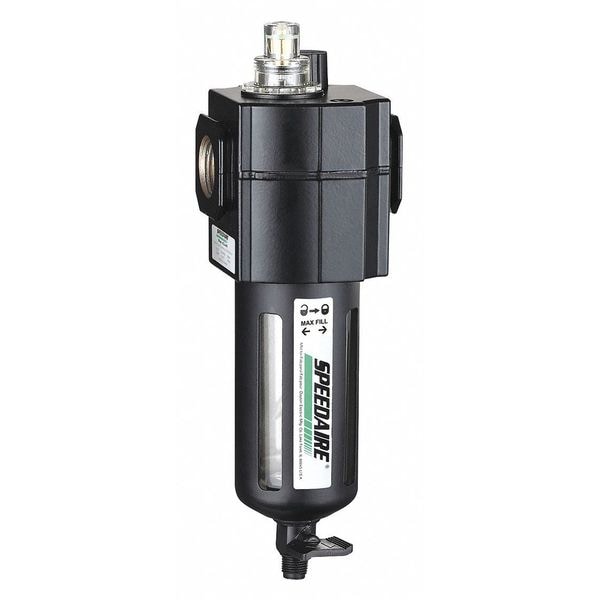

Speedaire Air Line Lubricator, 1/2In, 95 cfm, 150 psi 4ZL77
Hover or click to zoom Tap to zoom
$49.63
  • Item: Compressed Air Lubricator
  • Series: Intermediate Duty
  • Bowl Material: Plastic
See full product details
Orders over $75 ship free.
Total: $49.63

Speedaire #4ZL77 Specifications

  • Item: Compressed Air Lubricator
  • Series: Intermediate Duty
  • Bowl Material: Plastic
  • Pipe Size: 1/2 in NPT
  • Max. Flow: 95 cfm
  • Max. Pressure: 150 psi
  • Overall Height: 8 1/8 in
  • Overall Width: 2 11/16 in
  • Oil Feed Type: Mist
  • Max. Pipe Run: 20 ft
  • Drain Included: Yes
  • Sight Dome Included: Yes
  • Dome Material: Transparent Nylon
  • Adjustment Type: Screwdriver
  • Overall Length: 2.45 in
  • Max. Temp.: 125 Degrees F
  • Body Material: Aluminum
  • Bowl Size: 3.5 oz
  • Includes: (1) Oil Drop Controller
  • Weight: 0.63 kg
  • Sight Gauge Included: Yes
  • For Substance Type: Air
  • Lubricator Bowl Capacity: 3.5 oz
  • Air Outlet Gender: Female
  • Maximum Flow Rate: 95 cfm
  • Seal Material: Rubber
  • Duty Rating: Intermediate Duty
  • Minimum Operating Temperature: 5 Degrees C
  • Modular Connection: No Modular Connection
  • Air Outlet Type: NPT
  • Oil Capacity: 80 ct
  • System Location: Air Line
  • Air Inlet Size: 1/2 in
  • Air Outlet Size: 1/2 in
  • For Fluid Type: Compressed Air
  • For Maximum Pipe Run: 20 ft
  • Lubricator Type: Mist
  • Adjustment Mechanism: Screwdriver
  • Lubricator Bowl Material: Polycarbonate with Steel Guard
  • Number of Air Inlets: 1
  • Lubricator Bowl Guard Included: No
  • Lubricator Bowl Guard Material: Iron
  • Air Inlet Gender: Female
  • Adjustment Mechanism Material: PE
  • Air Inlet Type: NPT
  • Recommended Lubricant: ISO VG 32
  • Inlet Size: 1/2 in NPT
  • Drain Part Compatibility: 1AKG9A
  • Air Flow Direction: Left to Right
  • Maximum Operating Pressure: 150 psi
  • Number of Air Outlets: 1
  • Maximum Operating Temperature: 125 Degrees F
  • Country of Origin (subject to change): China

Description

Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Polycarbonate with Steel Guard, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 95 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Adjustment Mechanism Screwdriver, Body Material Aluminum, Overall Width 2 11/16 in, Series Intermediate Duty, Sight Dome Included Yes, Sight Gauge Included Yes, Adjustment Mechanism Material PE, Air Flow Direction Left to Right
