  11. Air Line Lubricator, 1/4In, 50 cfm, 250 psi
Shop All Pneumatic Lubricators
Speedaire

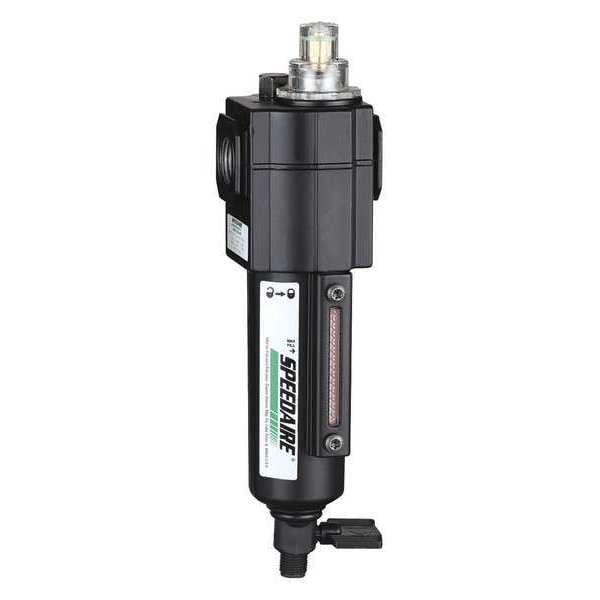

Air Line Lubricator, 1/4In, 50 cfm, 250 psi

product price: $41.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Compact
  • Bowl Material Metal
  • Pipe Size 1/4 in NPT
  • Max. Flow 50 cfm
  • Max. Pressure 250 psi
See all product information

Product Information

Dimensions

Pipe Size 1/4 in NPT
Overall Height 7 7/16 in
Overall Width 2 in
Overall Length 1.91 in
Bowl Size 2.2 oz
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in

Details

Item Compressed Air Lubricator
Series Compact
Bowl Material Metal
Max. Flow 50 cfm
Max. Pressure 250 psi
Dome Material Transparent Nylon
Sight Dome Included Yes
Max. Pipe Run 20 ft
Drain Included Yes
Adjustment Type Screwdriver
Oil Feed Type Mist
Body Material Zinc
Max. Temp. 175 Degrees F
Includes (1) Oil Drop Controller
Weight 0.7 kg
Number of Air Outlets 1
Maximum Operating Temperature 175 Degrees F
Lubricator Bowl Material Zinc
Air Inlet Gender Female
Maximum Operating Pressure 250 psi
For Fluid Type Compressed Air
Lubricator Type Mist
Lubricator Bowl Guard Included No
Maximum Flow Rate 50 cfm
Minimum Operating Temperature 5 Degrees C
Duty Rating Light Duty
Air Flow Direction Left to Right
Lubricator Bowl Guard Material Zinc
Oil Capacity 80 ct
System Location Air Line
Air Outlet Type NPT
Adjustment Mechanism Material PE
Adjustment Mechanism Screwdriver
Number of Air Inlets 1
Lubricator Bowl Capacity 2.2 oz
Recommended Lubricant ISO VG 32
For Maximum Pipe Run 20 ft
Modular Connection No Modular Connection
Drain Part Compatibility 114X36
Seal Material Rubber
Sight Gauge Included Yes
For Substance Type Air
Air Inlet Type NPT
Air Outlet Gender Female

Description

Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Zinc, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 50 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Adjustment Mechanism Screwdriver, Body Material Zinc, Overall Width 2 in, Series Compact, Sight Dome Included Yes, Sight Gauge Included Yes, Adjustment Mechanism Material PE, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female
