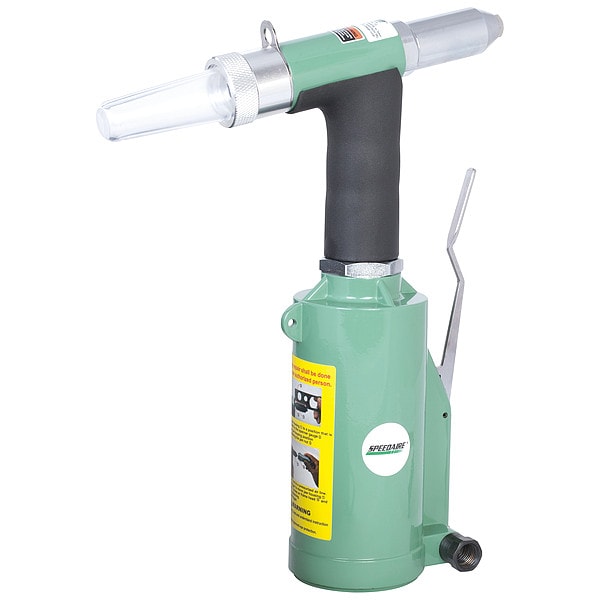

Speedaire Air Riveter, General, 1983 lb. 3CRH3 - main

Air Riveter, General, 1983 lb.

  • Mfr # 3CRH3

  • Zoro # G1202801

product price: $217.99
/ea
Free Shipping & Returns

Key Features

Overall Length
8 7/8 in
Tool Weight
3.2 lb
Stroke Length
5/8 in
Construction
Aluminum
Pulling Force
1,983 lbf
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3CRH3
Zoro #
G1202801
UPC #
190735620748
Country of Origin
Taiwan, Province of China

Dimensions

Overall Length
8 7/8 in
Stroke Length
5/8 in
Length
8 27/32 in
Dia.
3 in
Blind Rivet Dia.
1/8 in, 5/32 in, 3/16 in
Height
11 4/5 in
Min. Hose Size
3/8 in
Rivet Nut Dia.
1/8"
Air Inlet Size - Air Tools
1/4 in NPT
Overall Width
2 7/8 in
Overall Height
11 3/4 in
Blind Rivet Dia. - Aluminum
1/8 in, 5/32 in, 3/16 in
Blind Rivet Dia. - Stainless Steel
1/8 in, 5/32 in, 3/16 in
Blind Rivet Dia. - Steel
1/8 in, 5/32 in, 3/16 in

Details

Item
Rivet Tool
Tool Weight
3.2 lb
Construction
Aluminum
Pulling Force
1,983 lbf
Item - Air Riveters
Air Riveter
Duty
General
Air Inlet
1/4 in NPT Female
Mandrel Collection System Included
No
Pulling Force - Air Riveters
1,983 lb
CFM per Stroke
0.63
Max. Pressure
100 psi
Duty Cycle - Air Tools
General Duty
Includes
(3) Nosepieces 1/8 in, 5/32 in, 3/16 in, and Spanner
Features
Quick Release Air Valve, Prevents Overloading, Powerful Durable, High Speed Production Tool Performs well at any angle.
Max. Air Pressure
100 psi
Duty Rating
General Duty
Power Source
Air Powered
Min. Air Pressure
70 psi
Air Pressure
90 psi
Air Consumption
0.63 cfm
Housing Material
Aluminum
Includes Mandrel Collection
Yes
Exhaust Location
Side
Rivet Type
Blind Rivet

Description

Air Riveter, Air-Powered, Air Consumption 0.63 cfm, Air Inlet 1/4 in NPT Female, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 70 psi, Min. Hose Size 3/8 in, Exhaust Location Side, Duty Rating General Duty, Tool Brand Speedaire, For Rivet Nut Thread Size Not Applicable, For Helical Insert Size Not Applicable, Pulling Force 1,983 lbf, Rivet Type Blind Rivet, Blind Rivet Dia. - Aluminum 1/8 in, 5/32 in, 3/16 in, Blind Rivet Dia. - Stainless Steel 1/8 in, 5/32 in, 3/16 in
