Speedaire

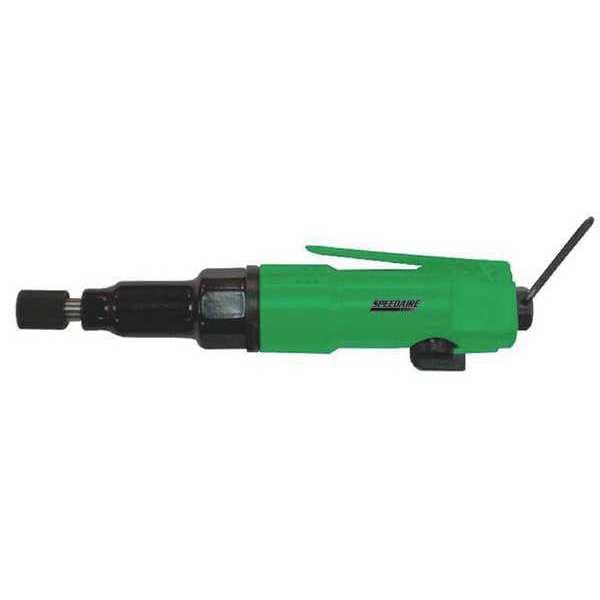

Air Screwdriver, Inline, 90 psi, 9-1/4 in L

product price: $123.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Style - Air Tools In-Line
  • Torque Range Soft Draw 20 to 40 in-lb
  • Max. Torque 3 ft-lb
  • Clutch Type - Air Screwdriver Adjustable Cushion
  • Throttle Type - Air Screwdrivers Lever
See all product information

Product Information

Dimensions

Air Inlet Size - Air Tools 1/4 in NPT
Min. Hose Size 3/8 in
Overall Length 9 1/4 in
Chuck Size 1/4 in
Drive Size 1/4 in
Overall Width 1/4 in
Overall Height 9 1/4 in

Details

Item - Air Screwdrivers Air Screwdriver
Body Style - Air Tools In-Line
Torque Range Soft Draw 20 to 40 in-lb
Max. Torque 3 ft-lb
Clutch Type - Air Screwdriver Adjustable Cushion
Throttle Type - Air Screwdrivers Lever
Free Speed 1,800 RPM
Duty Cycle - Air Tools General Duty
Item Screwdriver
Includes (2) Head Bits, (2) Wrenches, Clutch Spring
Throttle Type Lever
Handle Type Inline
Average CFM @ 15 Second Run Time 3.00
Required Pressure 90 psi
Clutch Type Positive
Hex Bit 1/4 in
Air Inlet 1/4 in NPT
Duty General
CFM @ Full Load 12.0
Operation Reversible
Air Pressure 90 psi
Air Consumption 3 cfm
Application Electronic
Drive Configuration Straight
Side to Center 0.1 in
Clutch Setting Location Internal
Housing Material Aluminum
Screw Capacity 1/4 in
Reversible Yes
HP 0.3 hp
Vibration Level 0.4 m/sq sec
Variable Speed No
Noise Level 82 dB
Tool Weight 1.8 lb
Handle Material Aluminum
Duty Rating General Duty
Torque Range 2.2 ft-lb to 3 ft-lb
Min. Torque 2.2 ft-lb
Explosive Environment Rated No
Exhaust Location Side
Power Source Air-Powered
Bearing Design Roller Bearing

Description

Screwdriver, In-Line Body Style - Air Tools, Torque Range Soft Draw 20 to 40 in-lb, Max. Torque 3 ft-lb, Clutch Type - Air Screwdriver Adjustable Cushion, Lever Throttle Type - Air Screwdrivers, Free Speed 1,800 RPM, General Duty Duty Cycle - Air Tools, Air Inlet Size - Air Tools 1/4 in NPT, 3.00 Average CFM @ 15 Second Run Time, 12.0 CFM @ Full Load, Required Pressure 90 psi, Min. Hose Size 3/8 in, Overall Length 9 1/4 in, Hex Bit 1/4 in, Reversible Operation
