Speedaire

Auto Drain Valve, Drain Size 1/4", 4.0 gpm

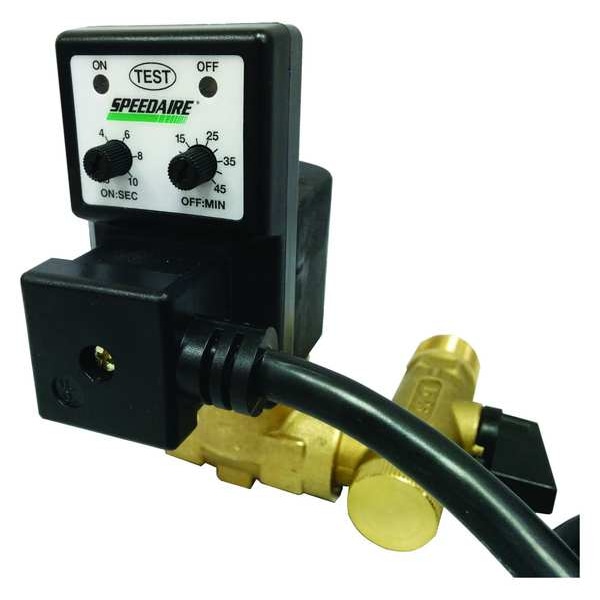

Speedaire Auto Drain Valve, Drain Size 1/4", 4.0 gpm 53DN44
Hover or click to zoom Tap to zoom
$123.01
  • Item: Timed Electric Auto Drain Valve
  • Pipe Size: 1/2 in NPT
  • Drain Size: 1/4 in
See full product details
This item ships free.
Total: $123.01

Speedaire #53DN44 Specifications

  • Item: Timed Electric Auto Drain Valve
  • Pipe Size: 1/2 in NPT
  • Drain Size: 1/4 in
  • Drain Rate: 4.0 gpm
  • Adjustable Drain Cycle: 0.5 min to 45 min
  • Purge Time: 1 sec to 10 sec
  • Overall Width: 4 in
  • Voltage: 115 V
  • Max. Pressure: 300 psi
  • Overall Depth: 9 in
  • Operating Temp. Range: 35 Degrees to 165 Degrees F
  • Overall Height: 4 55/64 in
  • Includes: 6 ft Heavy Duty Grounded Power Cord, Drain Strainer
  • Amps AC: 0.3 A
  • Enclosure: NEMA 4
  • Body Material: Brass
  • Hz: 60
  • Country of Origin (subject to change): Ireland

Description

Timed Electric Auto Drain Valve, Pipe Size 1/2 in NPT, Drain Size 1/4 in, Drain Rate 4.0 gpm, Adjustable Drain Cycle 0.5 min to 45 min, Purge Time 1 sec to 10 sec, Voltage 115 V, Max. Pressure 300 psi, Operating Temp. Range 35 Degrees to 165 Degrees F, Hz 60, Amps AC 0.3 A, Enclosure NEMA 4, Body Material Brass, Overall Height 4 55/64 in, Overall Width 4 in, Overall Depth 9 in, Includes 6 ft Heavy Duty Grounded Power Cord, Drain Strainer
