  11. Compressed Air Dryer, 125 cfm Max. Flow

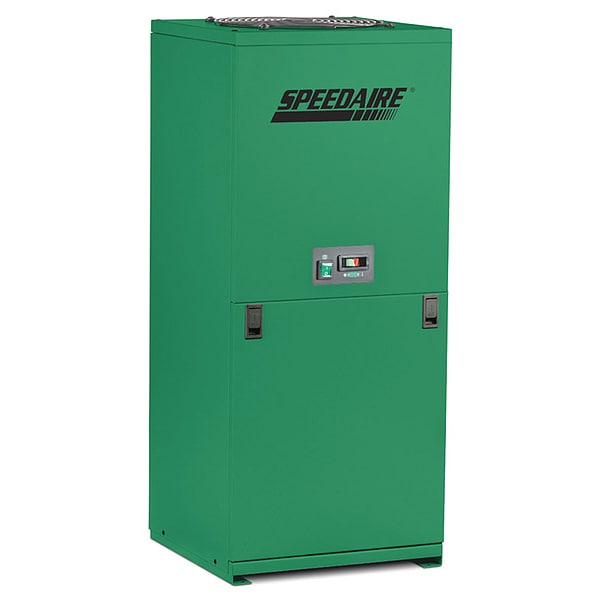

Speedaire Compressed Air Dryer, 125 cfm Max. Flow 55EY13 - main

Compressed Air Dryer, 125 cfm Max. Flow

  • Mfr # 55EY13

  • Zoro # G9362149

product price: $7,526.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Includes
Inlet Y Strainer
Phase
Single
Voltage
230V AC
Overall Height
41 in
Overall Width
18 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
55EY13
Zoro #
G9362149
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height
41 in
Overall Width
18 in
Overall Depth
17 in
Connection Size - Air Treatment
1 in NPT
Air Outlet Size
1 in
Air Inlet Size
1 in

Details

Item
Refrigerated Air Dryer
Includes
Inlet Y Strainer
Phase
Single
Voltage
230V AC
ISO Class
6
Refrigerant
R-407C
Max. Incoming Pressure - Air Treatment
230 psi
Bracket Kit
No
Max. Flow - Air Treatment
125 cfm
ISO Class - Air Treatment
6
Phase - Air Treatment
Single
Features
Dew Point Indicator, Front Panel Removal, Integrated Separator, On/Off Switch, Stainless Steel Heat Exchanger, Timed Electric Drain
Full Load Amps
9.25 A
Heat Exchanger Material
Stainless Steel
Max. Ambient Temp.
113 Degrees F
Refrigeration Compressor HP
1 47/64 hp
Item - Refrigerated Air Dryers
Compressed Air Dryer
Filter
Separator
Dew Point
50 Degrees F
Input Voltage - Air Treatment
230V AC
Max. Inlet Temp. - Air Treatment
180 Degrees F
Max. Air Compressor HP
35 hp
Power
1.97 kW
Finish
Powder Coated
Color
Green
For Maximum Compressor Output Power
35 hp
Refrigeration Compressor Horsepower
1.734375 hp
Housing Color
Green
Air Outlet Type
NPT
Filter Included
Yes
Bracket Kit Included
No
Air Inlet Type
NPT
Maximum Operating Temperature
180 Degrees F
Air Inlet Gender
Female
Drain Type
Timed Electric Drain
Maximum Ambient Temperature
113 Degrees F
Full Load Current
9.25 A
Drain Included
No
Series
HITN
Maximum Flow Rate
125 cfm
Maximum Operating Pressure
230 psi

Description

Refrigerated Air Dryer, ISO Class 6, Maximum Flow Rate 125 cfm, Voltage 230V AC, Phase Single, Air Inlet Size 1 in, Air Inlet Type NPT, Air Inlet Gender Female, Maximum Operating Temperature 180 Degrees F, Power 1.97 kW, Dew Point 50 Degrees F, Series HITN, Air Outlet Size 1 in, Air Outlet Type NPT, Bracket Kit Included No, Drain Included No, Drain Type Timed Electric Drain
