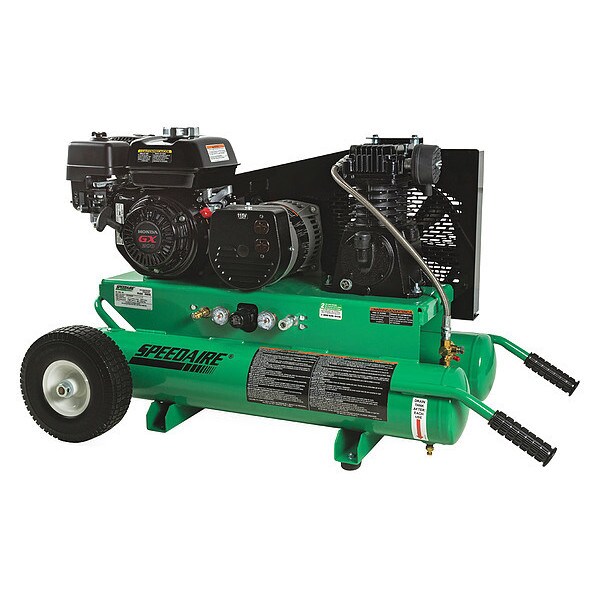

Compressor/Generator, 6.5 HP, 10.9 Max CFM

Mfr # AG1-PH65-08G
Zoro # G0462594

2,464.99

Additional $180.00 delivery surcharge applies per item.

Key Features

Item - Air Compressor

Portable Air Compressor, Generator

Engine HP - Air Compressor

6.5 hp

Rated Watts - Air Compressor, Generator

600/1600

Free Air CFM @ 90 PSI - Air Compressor

11.9

Tank Size - Air Compressor

8.0 gal

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: AG1-PH65-08G
Zoro #: G0462594
UPC #: 190735629857
Country of Origin: United States

Dimensions

Tank Size - Air Compressor: 8.0 gal
Overall Length: 44.5 in
Overall Height: 27.5 in
Overall Width: 26 in
Tank Size: 8 gal.
Air Tank Size: 8 gal
Outlet Size: 1/4 in
Wire Rope Length: 44.5 in
Length: 44.5 in

Details

Item - Air Compressor: Portable Air Compressor, Generator
Engine HP - Air Compressor: 6.5 hp
Rated Watts - Air Compressor, Generator: 600/1600
Free Air CFM @ 90 PSI - Air Compressor: 11.9
Tank Style - Air Compressor: Wheelbarrow
Engine Starter Type - Air Compressor: Recoil
Fuel Tank Capacity - Air Compressor: 0.95 gal
Sound Level - Air Compressor: 74.8 dB
(F)NPT Outlet: 1/4 in
Engine Oil Capacity: 20 oz
Amps @ 120/240V: 13.3/NA
Sleeves: Cast Iron
Engine Brand - Air Compressor: Honda
Number of Outlets: 2
Pump Type - Air Compressor: Piston
Max. Pressure - Air Compressor: 125 psi
Fuel Tank Capacity: 0.9 gal
HP: 6.5
Lubrication Type - Air compressor: Splash Lubricated
Sound Level dB: 74.8
Includes: (2) Gauges, Regulator
Tank Type: Twin
Fuel Type - Engine: Gasoline
Free Air CFM @ Max. Pressure - Air Compressor: 10.9
Run Time @ Full Load: 2.7 hr
Pump RPM: 1,380
Watts: 1600
ASME Tank: Yes
Rated Watts: 600/1600
Hz: 60
Weight: 207 lb
Max. Watts @ 120V: 1,800 W
Free Air CFM @ 90 PSI: 11.9
Item: Portable Air Compressor/Generator
Weight - Air Compressor: 207 lb
Pump Oil Capacity: 17.3 oz
Voltage: 120
Max. Pressure: 125 psi
Full Power Switch: On/Off
Free Air CFM @ Max. Pressure: 10.9
RPM: 3,300 RPM
Run Time @ 1/2 Load: 3.8 hr
Engine Brand: Honda
Number of Stages - Air Compressor: 1
Low Oil Shut Down: Yes
Guard Type: Steel
Starter Type: Recoil
Pump Type: Reciprocating
Lubrication Type: Splash Lubricated
Wattage: 1,800 W
Engine Output Power: 6 1/2 hp
Full-Load Run Time: 2.7 hr
Low Oil Shutdown: Yes
Sound Level: 74.8 dB
Maximum Operating Pressure: 125 psi
Number of Stages: 1
Frequency: 60 Hz
Air Tank Style: Wheelbarrow
Outlet Connection Type: NPT
Engine Starter Type: Recoil
Outlet Type: NPT
Fuel Type: Gasoline
Compressor Type: Portable
Engine Output Current: 13.3 A
Lubrication Required: Yes
Outlet Gender: Female
Compressor Oil Capacity: 17.3 oz
Maximum Speed: 3,300 RPM
Free Air Flow Rate @ Maximum Pressure: 10.9 cfm
Mobility: Portable

Description

Portable Air Compressor/Generator, Fuel Type Gasoline, Number of Stages 1, Engine Output Power 6 1/2 hp, Engine Brand Honda, Free Air Flow Rate @ Maximum Pressure 10.9 cfm, Maximum Operating Pressure 125 psi, Air Tank Size 8 gal, Air Tank Style Wheelbarrow, Engine Starter Type Recoil, Sound Level 74.8 dB, Pump Type Reciprocating, Wattage 1,800 W, Maximum Speed 3,300 RPM, Engine Output Current 13.3 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov

Hazardous material

This item has been restricted from sale in the following states: CA
