Shop All Pneumatic Condensate Separators
Speedaire

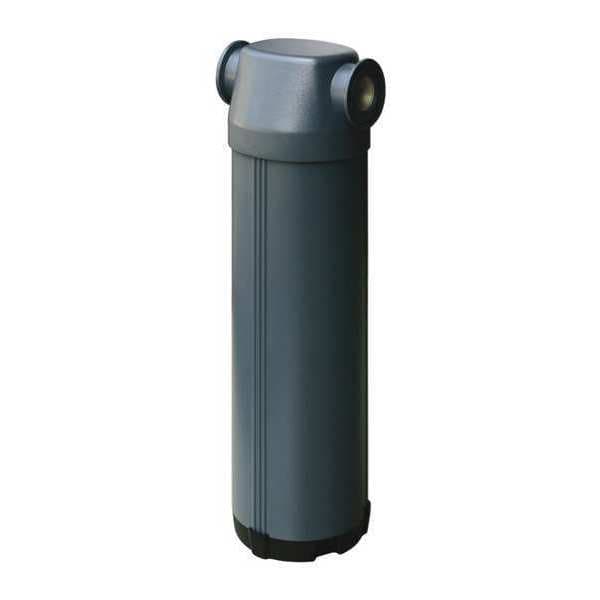

Condensate Separator, 60 cfm, 3/8" NPT

product price: $131.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • NPT Size 3/8 in
  • Float Type Automatic Internal Drain
  • Max. Flow (CFM) 60
  • Max. Pressure (PSI) 290 psi
  • Max. Temp. 176 Degrees F
See all product information

Product Information

Dimensions

NPT Size 3/8 in
Height (In.) 15 in
Dia. 5
Outside Diameter 5 in
Overall Depth 15 in
Overall Length 4 in
Air Outlet Size 3/8 in
Air Inlet Size 3/8 in

Details

Item Pneumatic Condensate Separator
Float Type Automatic Internal Drain
Max. Flow (CFM) 60
Max. Pressure (PSI) 290 psi
Max. Temp. 176 Degrees F
Housing Aluminum
Auto Drain Stock Number 4GNN2
Differential Pressure (PSI) 1
Max. Flow CFM @ 100 PSI 60
Body Material Aluminum
For Substance Type Air; Gas
Maximum Flow Rate 60 cfm
Drain Type Automatic
Maximum Operating Temperature 176 Degrees F
For Fluid Type Compressed Air, Gas
Filtered Substance Moisture
Minimum Operating Temperature 35 Degrees F
Drain Included Yes
Weight 3 lb
Drain Part Compatibility 4GNN2
Air Inlet Type NPT
Maximum Flow @ 100 psi 60 cfm
Maximum Operating Pressure 290 psi
Type Automatic Internal Drain
Air Outlet Type NPT

Description

Pneumatic Condensate Separator, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow @ 100 psi 60 cfm, Maximum Flow Rate 60 cfm, Maximum Operating Pressure 290 psi, Minimum Operating Temperature 35 Degrees F, Type Automatic Internal Drain, Outside Diameter 5 in, Overall Length 4 in, Weight 3 lb, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Drain Part Compatibility 4GNN2, Drain Type Automatic, Filtered Substance Moisture
