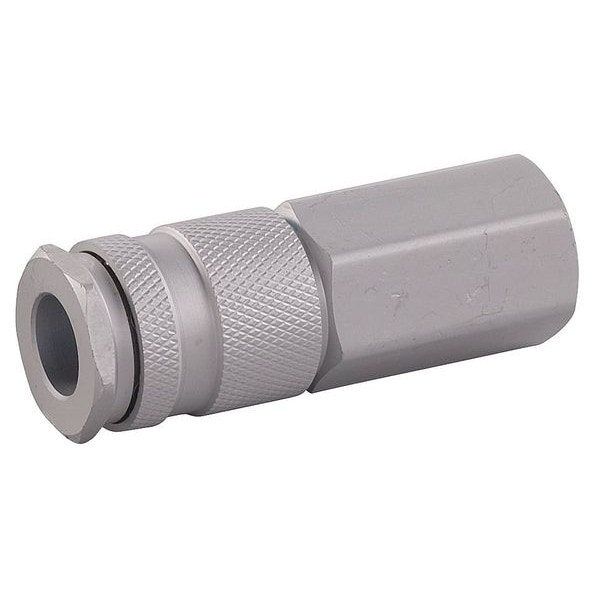

Coupler Body, (F)NPT, 1/4, Aluminum
Mfr # 30E623
Zoro # G4977935
Key Features
Specifications
Details
- MFR #
- 30E623
- Zoro #
- G4977935
- UPC #
- 190735612644
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Global Style High Flow
- Material
- Aluminum
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Anodized
- Max. Flow Rate
- 1,415.84 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Valve Type
- Poppet
- Max. Working Pressure @ 70 F
- 250 psi
- For Use With
- Connection to Quick Coupler Plug
- Barbed
- No
- Connection Thread Type
- NPT
Description
The SPEEDAIRE - 30E623 is a quick connect hose coupling with a push-to-connect locking mechanism for connection/disconnection of hoses using the specified design (no separate tools required for actuation). It provides a connection with a seal using the specified seal material (Nitrile) when properly connected to compatible fittings. This coupling is compatible with quick coupler plugs and provides rated flow up to 1,415.84 liters per minute under specified working pressure conditions. Rated for operation at 250 psi at 70°F and a maximum flow rate of 1,415.84 liters per minute, the coupling is constructed from anodized aluminum and includes an integrated poppet valve for flow control and release of connected media. It is rated for an operating temperature range of -40°F to 150°F.
Key Features:
- Coupling size: 1/4 in providing a nominal port connection for standard fittings.
- Hose fitting size: 1/2 in with female hose fitting gender.
- Connection type: NPT thread with a 1/2"-14 thread size.
- Push-to-connect coupling locking type for quick and tool-free operation.
- Material: Aluminum with anodized finish for surface treatment.
- Seal material: Nitrile ensuring fluid sealing in the connection.
- Includes an integrated poppet valve for flow control.
- Operating temperature range: -40°F to 150°F.
- Interchange type: Global Style High Flow, compatible with similar standardized fittings.
