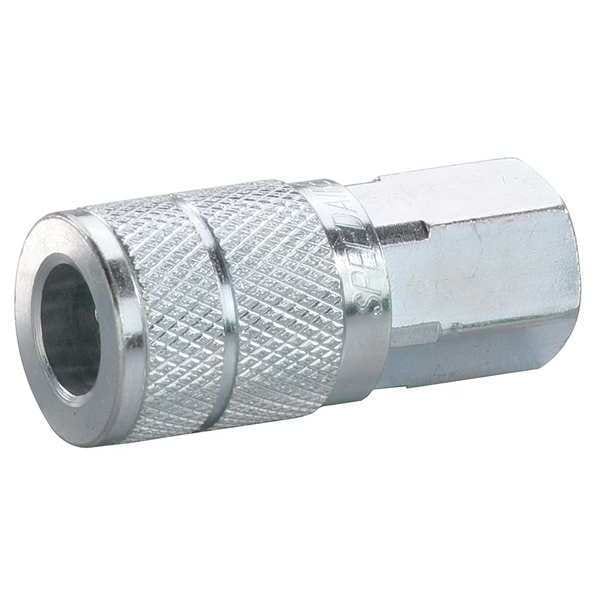

Coupler Body, (F)NPT, 1/4, Steel
- Mfr # 30E742
- Zoro # G4978382
product price:
$
6.49
/ea
Key Features
Interchange Type
Tru-Flate Automotive
Material
Steel
Coupling Component
Socket
Hose Fitting Gender
Female
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30E742
- Zoro #
- G4978382
- UPC #
- 190735613825
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate Automotive
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 991.09 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- For Use With
- Automotive Interchange Coupler
- Valve Type
- Poppet
- Connection Thread Type
- NPT
- Shell Material
- Steel
- Wire Color
- Silver
- Compatible Product Type
- Automotive Interchange Coupler
- Traction Material
- Steel
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Description
The SPEEDAIRE - 30E742 is a quick connect hose coupling used as a hose coupling for pneumatic, hydraulic, or fluid line applications. It permits connection and disconnection without tools using the socket with sleeve locking mechanism, and provides a pressure-sealing connection when installed using the specified thread and fitting sizes. The coupling includes a poppet valve to control flow during connection and disconnection and is compatible with the Tru-Flate-Automotive interchange standard (per specified interchange requirements).
Key Features:
- Material: Steel construction with a zinc-plated finish for surface protection.
- Connection Type: (Female) 1/4"-18 NPT thread size with a 1/4 in hose fitting size and coupling size.
- Coupling Component: Socket with sleeve locking mechanism for attachment using the socket with sleeve locking mechanism.
- Seal Material: Nitrile providing pressure sealing within a temperature range of -40°F to 150°F.
- Maximum Flow Rate: 991.09 liters per minute.
- maximum working pressure: 300 psi at 70°F ambient temperature.
- Includes Valve: Yes, featuring a poppet-type valve.
- Color: Silver appearance.
- compatible with automotive interchange coupler standard requirements
