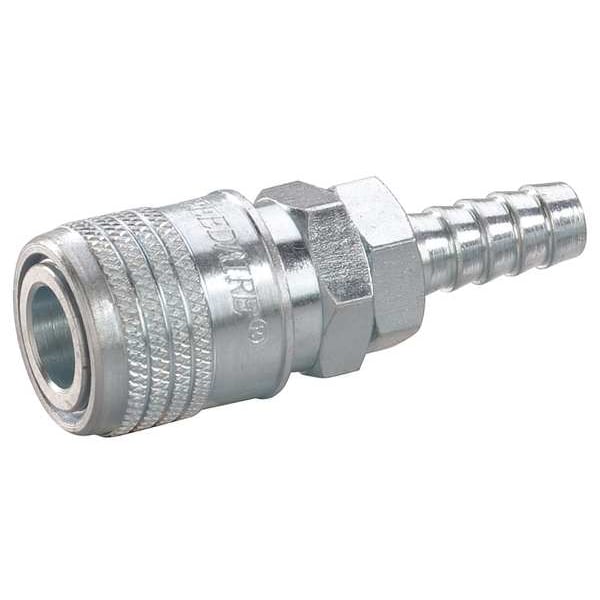

Coupler Body, Hose Barb, 1/4, Steel
- Mfr # 30E679
- Zoro # G4977305
Key Features
Specifications
Details
- MFR #
- 30E679
- Zoro #
- G4977305
- UPC #
- 190735613207
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 991.09 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- For Hose I.D.
- 1/4 in
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- Yes
- For Use With
- Industrial Interchange Plug
- Valve Type
- Poppet
- Shell Material
- Steel
Description
The SPEEDAIRE - 30E679 is a quick connect hose coupling designed for use on the end of a hose or air supply. provides a quick-connect connection method without requiring tools for connection/disconnection. The coupling is rated for use with industrial interchange plugs of the specified interface type and features a sleeve locking mechanism that holds the connection when installed and used within the specified max working pressure and temperature range. It is constructed of steel with a zinc-plated finish, and includes a poppet valve for controlling flow during connection/disconnection. rated for 1/4 in hose inner diameter and 1/4 in body/coupling size, for use in pneumatic and fluid transfer applications within the specified operating parameters (max working pressure and temperature range).
Key Features:
- Application: End of Hose or Air Supply
- Connection Type: Hose Barb with 1/4 in barb size
- Hose Fitting Gender: Male; Hose Fitting Size: 1/4 in
- Material: Steel with Zinc Plated finish
- Coupling Component: Socket
- Coupling Locking Type: Sleeve
- Includes Valve: Yes, Poppet type
- Interchange Type: Industrial
- Seal Material: Nitrile
- Max Flow Rate: maximum rated flow rate: 991.09 L/min
- Max Working Pressure: maximum working pressure rating: 300 psi at 70°F
- Temperature Range: rated operating temperature range: -40°F to 150°F
- Compatibility: For use with Industrial Interchange Plug
