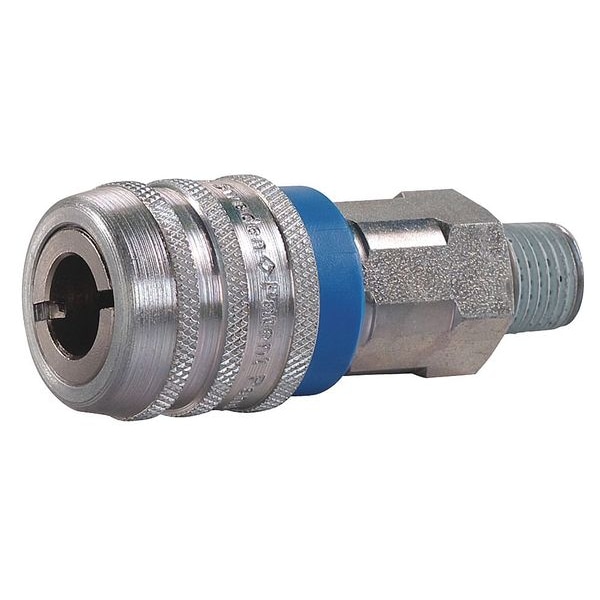

Coupler Body, (M)NPT, 1/4, Brass/Steel
Mfr # 30E525
Zoro # G4977271
Key Features
Specifications
Product Information
- MFR #
- 30E525
- Zoro #
- G4977271
- UPC #
- 190735611678
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 991.09 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Max. Working Pressure @ 70 F
- 175 psi
- Barbed
- No
- Valve Type
- Poppet
- For Use With
- Industrial Interchange Plug
- Connection Thread Type
- NPT
Description
The SPEEDAIRE - 30E525 is a quick connect hose coupling uses a push-to-connect locking mechanism for connection and disconnection without additional tools. It is for use with hoses or air supply lines that meet the stated pressure/temperature ratings and is rated to provide a sealed connection when coupled within the specified pressure and temperature ranges. The coupling is compatible with pneumatic and fluid lines within the specified maximum working pressure and operating temperature range and includes a 1/4 in male hose fitting with 1/4”-18 NPT threads. It is compatible with industrial interchange plugs, allowing integration with various air tools and equipment.
Key Features:
- Coupling component: Socket
- Connection type: 1/4"-18 NPT male thread
- Material: Steel with zinc plated finish
- Includes an integrated poppet valve
- Rated maximum working pressure: 175 psi at 70°F
- Rated maximum flow rate: 991.09 liters per minute (when used within specified coupling conditions)
- Seal material: Nitrile
- Rated operating temperature range: -40°F to 150°F
- Coupling size: 1/4 in
- Interchange type: Industrial
