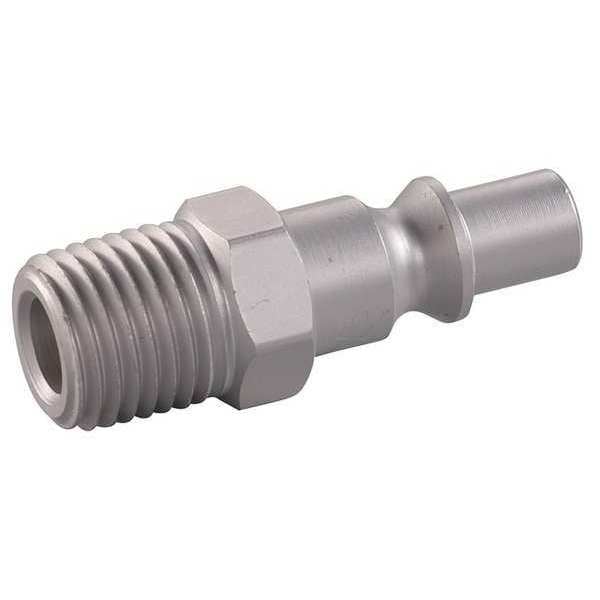

Coupler Plug, (M)NPT, 1/4, Aluminum
- Mfr # 30E656
- Zoro # G5033472
Key Features
Specifications
Details
- MFR #
- 30E656
- Zoro #
- G5033472
- UPC #
- 190735612972
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- ARO
- Material
- Aluminum
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Anodized
- Max. Flow Rate
- 1,132.67 lpm
- Includes Valve
- No
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Nitrogen Tire Inflation Equipment
- Color Code
- Clear
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- For Use With
- Nitrogen Tire Inflation Equipment
- Connection Thread Type
- NPT
- Shell Material
- Aluminum
- Wire Color
- Silver
- Compatible Product Type
- Nitrogen Tire Inflation Equipment
- Traction Material
- Aluminum
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Description
The SPEEDAIRE - 30E656 is a quick connect hose coupling for nitrogen tire inflation equipment (1/4 inch connection, ARO interchange). It provides push/pull locking for hose connection and disconnection without required tools, is rated to form a sealed connection for fluid/air lines when used within the specified pressure and temperature ratings. This coupling is compatible with equipment requiring a 1/4 inch connection and supports interchangeability with ARO-style fittings. It is constructed from aluminum with an anodized finish. It has a maximum rated flow rate of 1,132.67 liters per minute and a maximum working pressure rating of 300 psi at 70°F. It has an operating temperature range of -40°F to 150°F (when used within the specified pressure/flow ratings). The product has a male hose fitting with a 1/4 inch size and 1/4"-18 thread specification.
Key Features:
- Provides push/pull locking for hose connection and disconnection without required tools.
- Aluminum construction with anodized finish.
- 1/4 inch coupling size with 1/4" -18 thread size specification.
- Male hose fitting gender and 1/4 inch hose fitting size.
- Maximum rated flow rate of 1,132.67 lpm.
- Maximum working pressure rating of 300 psi at 70°F (at 70°F).
- Operating temperature range of -40°F to 150°F (when used within the specified pressure/flow ratings).
- ARO interchange type for compatibility with corresponding fittings.
- Color: Silver with clear color code for identification.
- Does not include an integrated valve component.
