Coupler Plug, (M)NPT, 1/4, Brass
Mfr # 30E707
Zoro # G4869435
Key Features
Specifications
Product Information
- MFR #
- 30E707
- Zoro #
- G4869435
- UPC #
- 190735613474
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Brass
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Polished
- Max. Flow Rate
- 1,132.67 lpm
- Seal Material
- Buna-N
- Includes Valve
- No
- Color
- Gold
- Temp. Range
- -40 Degrees to 150 Degrees F
- Standards
- ISO 6150, MIL-C-4109F
- Application
- Used on End of Hose or Tool Inlet
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- For Use With
- Industrial Interchange Coupler
- Connection Thread Type
- NPT
Description

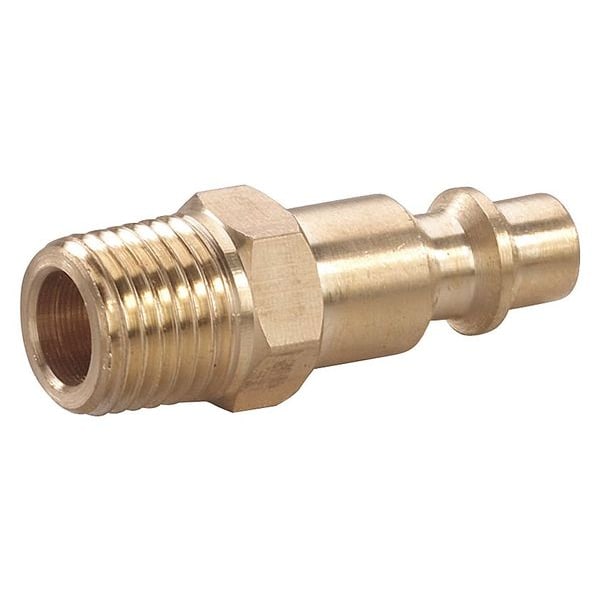

The SPEEDAIRE - 30E707 is a brass quick connect hose coupling intended for connection and disconnection of hoses or equipment without the use of an additional tool, using an industrial interchange system. It features a 1/4-inch body size and coupling size with male hose fitting gender and a 1/4"-18 NPT thread size. This fitting uses a Buna-N seal and is rated for use with compressed air and fluid lines within the specified operating temperature range and maximum working pressure. It is rated for operation within -40°F to 150°F and has a maximum working pressure rating of 300 psi at the stated conditions (70°F). Its polished gold finish and Buna-N seals help support reliable performance when used on end-of-hose or tool-inlet connections carrying compressed air or fluids, when installed with compatible fittings and within the specified pressure and temperature ratings.
Key Features:
- Material: Brass construction with a polished finish.
- Connection: Male hose fitting with 1/4"-18 NPT threading.
- Compatibility: Fits 1/4-inch industrial interchange couplers.
- Seal: Buna-N seal material.
- Maximum flow rate of 1,132.67 L/min, when used with compatible couplers and under conditions that meet the product specifications
- Maximum working pressure rating of 300 psi at the stated conditions (70°F).
- Operating temperature range: -40°F to 150°F.
- Standards: Complies with ISO 6150 and MIL-C-4109F specifications.
- Application: Used on end of hose or tool inlet connections.
- Includes valve: No valve included.
